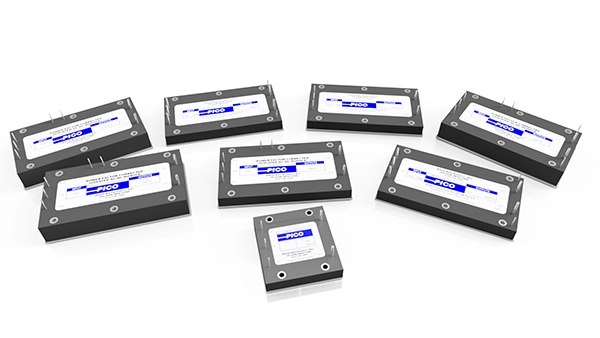

AC-DC with Power Factor Correction Modules

Pico Electronics offer a variety of Power Factor Corrected (PFC) modules designed for aerospace, defense and commercial applications. These compact, reliable modules feature universal input voltage (85-265VAC), single/three phase inputs and operating frequency of 47-440Hz. With power outputs up to 2000 Watts, isolated DC outputs from 5-300VDC or non-isolated 365VDC outputs, Pico’s PFC modules cater to diverse power requirements. These modules feature 0.99 Power Factor, through hole mounting and meets EN/IEC 61000-3-2 for harmonic distortion. Pico’s PFC modules exemplify their commitment to miniaturization and high-performance power conversion technology

Part Number	Series	# of Outputs	Mounting	Power Factor Corrected	Input Voltage Range (VAC)	Single Output Voltage (VDC)	Single Max Output Power (W)	Downloads
UACHV300S	UAC	Single	Through Hole	PFC	85 – 265	300	250	Datasheet Mechanical Drawing 3D Model
UACHV275S	UAC	Single	Through Hole	PFC	85 – 265	275	250	Datasheet Mechanical Drawing 3D Model
UACHV250S	UAC	Single	Through Hole	PFC	85 – 265	250	250	Datasheet Mechanical Drawing 3D Model
UACHV225S	UAC	Single	Through Hole	PFC	85 – 265	225	250	Datasheet Mechanical Drawing 3D Model
UACHV200S	UAC	Single	Through Hole	PFC	85 – 265	200	250	Datasheet Mechanical Drawing 3D Model
UACHV175S	UAC	Single	Through Hole	PFC	85 – 265	175	250	Datasheet Mechanical Drawing 3D Model
UACHV150S	UAC	Single	Through Hole	PFC	85 – 265	150	250	Datasheet Mechanical Drawing 3D Model
UACHV125S	UAC	Single	Through Hole	PFC	85 – 265	125	250	Datasheet Mechanical Drawing 3D Model
UACHV100S	UAC	Single	Through Hole	PFC	85 – 265	100	250	Datasheet Mechanical Drawing 3D Model
UAC9S	UAC	Single	Through Hole	PFC	85 – 265	9	100	Datasheet Mechanical Drawing 3D Model
UAC5S	UAC	Single	Through Hole	PFC	85 – 265	5	100	Datasheet Mechanical Drawing 3D Model
UAC48S	UAC	Single	Through Hole	PFC	85 – 265	48	200	Datasheet Mechanical Drawing 3D Model
UAC28S	UAC	Single	Through Hole	PFC	85 – 265	28	200	Datasheet Mechanical Drawing 3D Model
UAC24S	UAC	Single	Through Hole	PFC	85 – 265	24	200	Datasheet Mechanical Drawing 3D Model
UAC15S	UAC	Single	Through Hole	PFC	85 – 265	15	150	Datasheet Mechanical Drawing 3D Model
UAC12S	UAC	Single	Through Hole	PFC	85 – 265	12	150	Datasheet Mechanical Drawing 3D Model
PHA1	PHA	Single	Through Hole	PFC	85 – 250	365	500	Datasheet Mechanical Drawing 3D Model
LPHA1	PHA	Single	Through Hole	PFC	85 – 250	365	250	Datasheet Mechanical Drawing 3D Model
HPHA2	PHA	Single	Through Hole	PFC	85 – 250, 165 – 250 (3Φ)	365	2000	Datasheet Mechanical Drawing 3D Model
HPHA1	PHA	Single	Through Hole	PFC	85 – 250, 165 – 250 (3Φ)	365	1000	Datasheet Mechanical Drawing 3D Model
AC3-9S	AC	Single	Through Hole	PFC	165 – 250 (3Φ)	9	250	Datasheet Mechanical Drawing 3D Model
AC3-5S	AC	Single	Through Hole	PFC	165 – 250 (3Φ)	5	150	Datasheet Mechanical Drawing 3D Model
AC3-48S	AC	Single	Through Hole	PFC	165 – 250 (3Φ)	48	300	Datasheet Mechanical Drawing 3D Model
AC3-300S	AC	Single	Through Hole	PFC	165 – 250 (3Φ)	300	250	Datasheet Mechanical Drawing 3D Model
AC3-28S	AC	Single	Through Hole	PFC	165 – 250 (3Φ)	28	300	Datasheet Mechanical Drawing 3D Model
AC3-275S	AC	Single	Through Hole	PFC	165 – 250 (3Φ)	275	250	Datasheet Mechanical Drawing 3D Model
AC3-250S	AC	Single	Through Hole	PFC	165 – 250 (3Φ)	250	250	Datasheet Mechanical Drawing 3D Model
AC3-24S	AC	Single	Through Hole	PFC	165 – 250 (3Φ)	24	300	Datasheet Mechanical Drawing 3D Model
AC3-225S	AC	Single	Through Hole	PFC	165 – 250 (3Φ)	225	250	Datasheet Mechanical Drawing 3D Model
AC3-200S	AC	Single	Through Hole	PFC	165 – 250 (3Φ)	200	250	Datasheet Mechanical Drawing 3D Model
AC3-175S	AC	Single	Through Hole	PFC	165 – 250 (3Φ)	175	250	Datasheet Mechanical Drawing 3D Model
AC3-15S	AC	Single	Through Hole	PFC	165 – 250 (3Φ)	15	300	Datasheet Mechanical Drawing 3D Model
AC3-150S	AC	Single	Through Hole	PFC	165 – 250 (3Φ)	150	250	Datasheet Mechanical Drawing 3D Model
AC3-12S	AC	Single	Through Hole	PFC	165 – 250 (3Φ)	12	300	Datasheet Mechanical Drawing 3D Model
AC3-125S	AC	Single	Through Hole	PFC	165 – 250 (3Φ)	125	250	Datasheet Mechanical Drawing 3D Model
AC3-100S	AC	Single	Through Hole	PFC	165 – 250 (3Φ)	100	250	Datasheet Mechanical Drawing 3D Model
AC1-9S	AC	Single	Through Hole	PFC	85 – 265	9	250	Datasheet Mechanical Drawing 3D Model
AC1-5S	AC	Single	Through Hole	PFC	85 – 265	5	150	Datasheet Mechanical Drawing 3D Model
AC1-48S	AC	Single	Through Hole	PFC	85 – 265	48	300	Datasheet Mechanical Drawing 3D Model
AC1-28S	AC	Single	Through Hole	PFC	85 – 265	28	300	Datasheet Mechanical Drawing 3D Model
AC1-24S	AC	Single	Through Hole	PFC	85 – 265	24	300	Datasheet Mechanical Drawing 3D Model
AC1-15S	AC	Single	Through Hole	PFC	85 – 265	15	300	Datasheet Mechanical Drawing 3D Model
AC1-12S	AC	Single	Through Hole	PFC	85 – 265	12	300	Datasheet Mechanical Drawing 3D Model

Series Listing

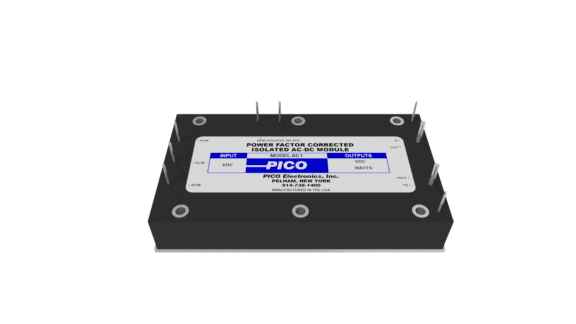

Rectangular electronic module with labeled inputs and outputs, stating "Power Factor Corrected Isolated AC-DC Module" by Pico Electronics, showing input and output voltage and watt details.

AC

Power: 300W, V_IN: 85-265 VAC, V_OUT: 5-300 VDC

Two rectangular electronic components labeled "PICO" on white background. One component is larger with eight pins; the other is smaller with six pins.

PHA

Power: 250-2000W, V_IN: 85-265 VAC, V_OUT: 365 VDC

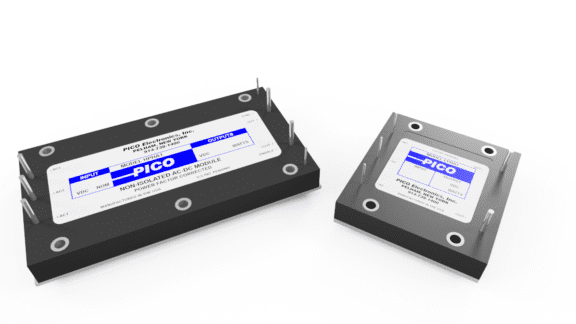

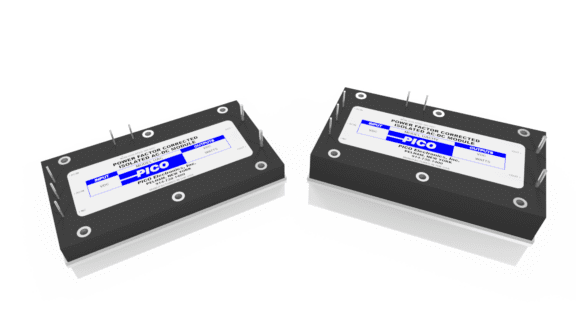

Two rectangular electronic modules with labels displaying the word "PICO," featuring multiple pins for connectivity, oriented at different angles.

UAC

Power: 250W, V_IN: 85-265 VAC, V_OUT: 5-300 VDC
