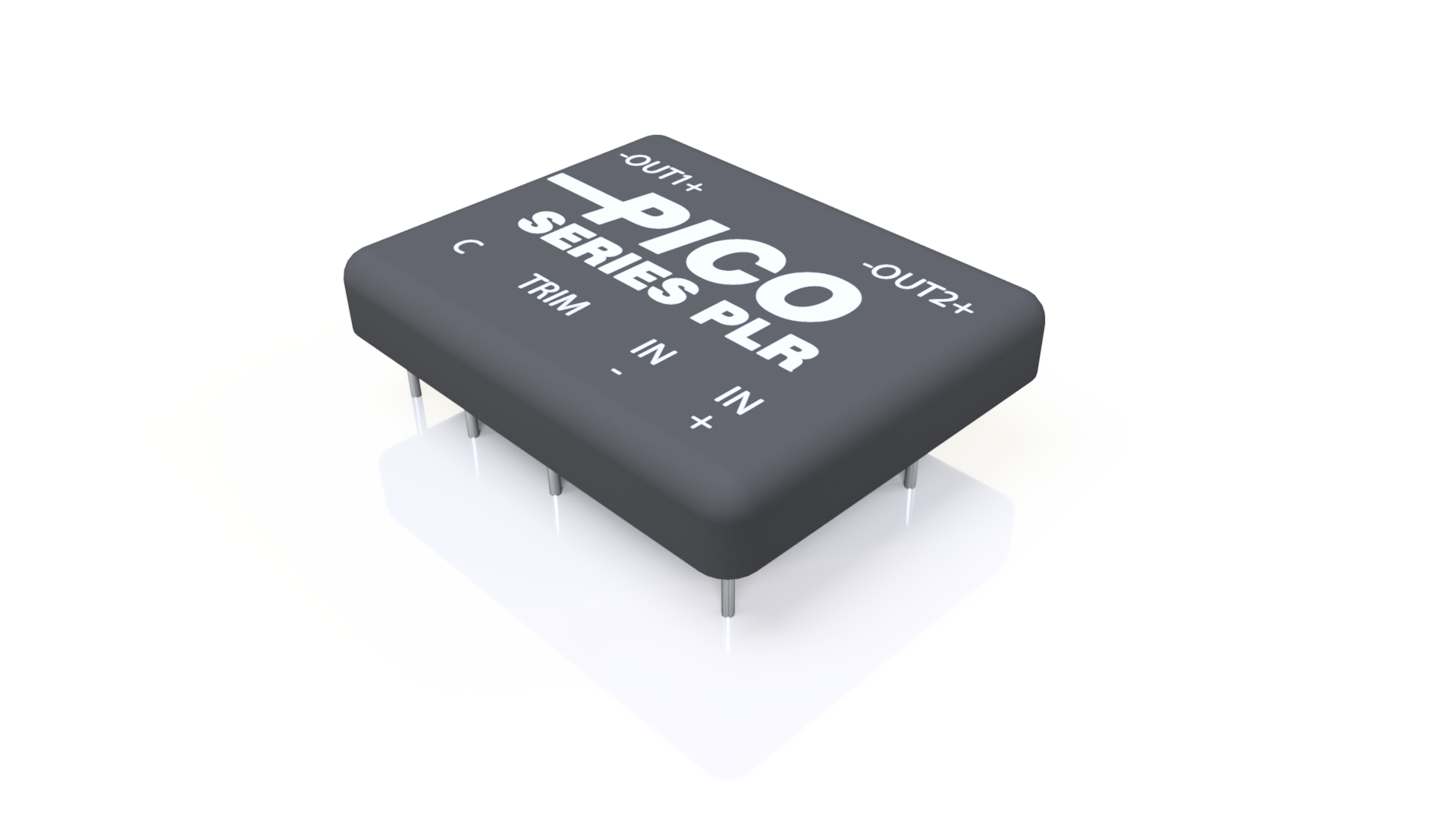

Series PLR render 1

Series PLR

5W Isolated Regulated Low Profile DC-DC Converter

The PLR series is an isolated/regulated DC-DC converter with wide input range, tight regulation and six-sided shielded case. These modules have trimming and control features. Single and dual isolated output models are standard. They can operate up to 5W over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.

Download Datasheet

Custom Solutions

Didn’t find exactly what you need or need a slight change?

Submit your custom specifications

Features

  • Up to 5W output at +70°C ambient
  • Low profile – 0.300” height
  • Up to 3.33:1 input voltage range
  • 3.3 to 100V output models
  • Six-sided shielded case
  • Control feature
  • Trimmable output
  • Input/output isolation
  • Single and dual isolated output
  • No external components required
  • No heat sink or derating required

Options

  • Expanded operating temp: -55°C to +85°C
  • Select screening per MIL-STD-883:
    • Stabilization Bake: Ref. Method 1008
    • Temperature Cycle: Ref. Method 1010
    • Burn-In: Ref. Method 1015
  • Special Input Voltage, Output Voltage, Isolation Voltage or Output Power

# of Outputs

Input Voltage Range (VDC)

Single Output Voltage (VDC)

Single Max Output Power (W)

Dual Output Voltage (VDC)

Dual Max Output Power (W)

Part Number Mounting# of OutputsOutput TypeNominal Input Voltage (VDC)Input Voltage Range (VDC)Single Output Voltage (VDC)Single Max Output Power (W)Dual Output Voltage (VDC)Dual Max Output Power (W)Downloads
PLRF9SThrough HoleSingleRegulated168 – 2495 – –
DatasheetMechanical Drawing3D Model
PLRF9DThrough HoleDualRegulated168 – 24 – – 9/92.5/2.5
DatasheetMechanical Drawing3D Model
PLRF5SThrough HoleSingleRegulated168 – 2455 – –
DatasheetMechanical Drawing3D Model
PLRF5DThrough HoleDualRegulated168 – 24 – – 5/52.5/2.5
DatasheetMechanical Drawing3D Model
PLRF5.2SThrough HoleSingleRegulated168 – 245.25 – –
DatasheetMechanical Drawing3D Model
PLRF48SThrough HoleSingleRegulated168 – 24485 – –
DatasheetMechanical Drawing3D Model
PLRF48DThrough HoleDualRegulated168 – 24 – – 48/482.5/2.5
DatasheetMechanical Drawing3D Model
PLRF3.3SThrough HoleSingleRegulated168 – 243.34 – –
DatasheetMechanical Drawing3D Model
PLRF28SThrough HoleSingleRegulated168 – 24285 – –
DatasheetMechanical Drawing3D Model
PLRF28DThrough HoleDualRegulated168 – 24 – – 28/282.5/2.5
DatasheetMechanical Drawing3D Model
PLRF24SThrough HoleSingleRegulated168 – 24245 – –
DatasheetMechanical Drawing3D Model
PLRF24DThrough HoleDualRegulated168 – 24 – – 24/242.5/2.5
DatasheetMechanical Drawing3D Model
PLRF15SThrough HoleSingleRegulated168 – 24155 – –
DatasheetMechanical Drawing3D Model
PLRF15DThrough HoleDualRegulated168 – 24 – – 15/152.5/2.5
DatasheetMechanical Drawing3D Model
PLRF12SThrough HoleSingleRegulated168 – 24125 – –
DatasheetMechanical Drawing3D Model
PLRF12DThrough HoleDualRegulated168 – 24 – – 12/122.5/2.5
DatasheetMechanical Drawing3D Model
PLRF100SThrough HoleSingleRegulated168 – 241005 – –
DatasheetMechanical Drawing3D Model
PLRE9SThrough HoleSingleRegulated105 – 1594 – –
DatasheetMechanical Drawing3D Model
PLRE9DThrough HoleDualRegulated105 – 15 – – 9/92/2
DatasheetMechanical Drawing3D Model
PLRE5SThrough HoleSingleRegulated105 – 1553 – –
DatasheetMechanical Drawing3D Model
PLRE5DThrough HoleDualRegulated105 – 15 – – 5/51.5/1.5
DatasheetMechanical Drawing3D Model
PLRE5.2SThrough HoleSingleRegulated105 – 155.23 – –
DatasheetMechanical Drawing3D Model
PLRE48SThrough HoleSingleRegulated105 – 15484 – –
DatasheetMechanical Drawing3D Model
PLRE48DThrough HoleDualRegulated105 – 15 – – 48/482/2
DatasheetMechanical Drawing3D Model
PLRE3.3SThrough HoleSingleRegulated105 – 153.33 – –
DatasheetMechanical Drawing3D Model
PLRE28SThrough HoleSingleRegulated105 – 15284 – –
DatasheetMechanical Drawing3D Model
PLRE28DThrough HoleDualRegulated105 – 15 – – 28/282/2
DatasheetMechanical Drawing3D Model
PLRE24SThrough HoleSingleRegulated105 – 15244 – –
DatasheetMechanical Drawing3D Model
PLRE24DThrough HoleDualRegulated105 – 15 – – 24/242/2
DatasheetMechanical Drawing3D Model
PLRE15SThrough HoleSingleRegulated105 – 15154 – –
DatasheetMechanical Drawing3D Model
PLRE15DThrough HoleDualRegulated105 – 15 – – 15/152/2
DatasheetMechanical Drawing3D Model
PLRE12SThrough HoleSingleRegulated105 – 15124 – –
DatasheetMechanical Drawing3D Model
PLRE12DThrough HoleDualRegulated105 – 15 – – 12/122/2
DatasheetMechanical Drawing3D Model
PLRE100SThrough HoleSingleRegulated105 – 151004 – –
DatasheetMechanical Drawing3D Model
PLRC9SThrough HoleSingleRegulated3918 – 6095 – –
DatasheetMechanical Drawing3D Model
PLRC9DThrough HoleDualRegulated3918 – 60 – – 9/92.5/2.5
DatasheetMechanical Drawing3D Model
PLRC5SThrough HoleSingleRegulated3918 – 6055 – –
DatasheetMechanical Drawing3D Model
PLRC5DThrough HoleDualRegulated3918 – 60 – – 5/52.5/2.5
DatasheetMechanical Drawing3D Model
PLRC5.2SThrough HoleSingleRegulated3918 – 605.25 – –
DatasheetMechanical Drawing3D Model
PLRC48SThrough HoleSingleRegulated3918 – 60485 – –
DatasheetMechanical Drawing3D Model
PLRC48DThrough HoleDualRegulated3918 – 60 – – 48/482.5/2.5
DatasheetMechanical Drawing3D Model
PLRC3.3SThrough HoleSingleRegulated3918 – 603.34 – –
DatasheetMechanical Drawing3D Model
PLRC28SThrough HoleSingleRegulated3918 – 60285 – –
DatasheetMechanical Drawing3D Model
PLRC28DThrough HoleDualRegulated3918 – 60 – – 28/282.5/2.5
DatasheetMechanical Drawing3D Model
PLRC24SThrough HoleSingleRegulated3918 – 60245 – –
DatasheetMechanical Drawing3D Model
PLRC24DThrough HoleDualRegulated3918 – 60 – – 24/242.5/2.5
DatasheetMechanical Drawing3D Model
PLRC15SThrough HoleSingleRegulated3918 – 60155 – –
DatasheetMechanical Drawing3D Model
PLRC15DThrough HoleDualRegulated3918 – 60 – – 15/152.5/2.5
DatasheetMechanical Drawing3D Model
PLRC12SThrough HoleSingleRegulated3918 – 60125 – –
DatasheetMechanical Drawing3D Model
PLRC12DThrough HoleDualRegulated3918 – 60 – – 12/122.5/2.5
DatasheetMechanical Drawing3D Model
PLRC100SThrough HoleSingleRegulated3918 – 601005 – –
DatasheetMechanical Drawing3D Model
PLRB9SThrough HoleSingleRegulated4836 – 6095 – –
DatasheetMechanical Drawing3D Model
PLRB9DThrough HoleDualRegulated4836 – 60 – – 9/92.5/2.5
DatasheetMechanical Drawing3D Model
PLRB5SThrough HoleSingleRegulated4836 – 6055 – –
DatasheetMechanical Drawing3D Model
PLRB5DThrough HoleDualRegulated4836 – 60 – – 5/52.5/2.5
DatasheetMechanical Drawing3D Model
PLRB5.2SThrough HoleSingleRegulated4836 – 605.25 – –
DatasheetMechanical Drawing3D Model
PLRB48SThrough HoleSingleRegulated4836 – 60485 – –
DatasheetMechanical Drawing3D Model
PLRB48DThrough HoleDualRegulated4836 – 60 – – 48/482.5/2.5
DatasheetMechanical Drawing3D Model
PLRB3.3SThrough HoleSingleRegulated4836 – 603.34 – –
DatasheetMechanical Drawing3D Model
PLRB28SThrough HoleSingleRegulated4836 – 60285 – –
DatasheetMechanical Drawing3D Model
PLRB28DThrough HoleDualRegulated4836 – 60 – – 28/282.5/2.5
DatasheetMechanical Drawing3D Model
PLRB24SThrough HoleSingleRegulated4836 – 60245 – –
DatasheetMechanical Drawing3D Model
PLRB24DThrough HoleDualRegulated4836 – 60 – – 24/242.5/2.5
DatasheetMechanical Drawing3D Model
PLRB15SThrough HoleSingleRegulated4836 – 60155 – –
DatasheetMechanical Drawing3D Model
PLRB15DThrough HoleDualRegulated4836 – 60 – – 15/152.5/2.5
DatasheetMechanical Drawing3D Model
PLRB12SThrough HoleSingleRegulated4836 – 60125 – –
DatasheetMechanical Drawing3D Model
PLRB12DThrough HoleDualRegulated4836 – 60 – – 12/122.5/2.5
DatasheetMechanical Drawing3D Model
PLRB100SThrough HoleSingleRegulated4836 – 601005 – –
DatasheetMechanical Drawing3D Model
PLRA9SThrough HoleSingleRegulated2718 – 3695 – –
DatasheetMechanical Drawing3D Model
PLRA9DThrough HoleDualRegulated2718 – 36 – – 9/92.5/2.5
DatasheetMechanical Drawing3D Model
PLRA5SThrough HoleSingleRegulated2718 – 3655 – –
DatasheetMechanical Drawing3D Model
PLRA5DThrough HoleDualRegulated2718 – 36 – – 5/52.5/2.5
DatasheetMechanical Drawing3D Model
PLRA5.2SThrough HoleSingleRegulated2718 – 365.25 – –
DatasheetMechanical Drawing3D Model
PLRA48SThrough HoleSingleRegulated2718 – 36485 – –
DatasheetMechanical Drawing3D Model
PLRA48DThrough HoleDualRegulated2718 – 36 – – 48/482.5/2.5
DatasheetMechanical Drawing3D Model
PLRA3.3SThrough HoleSingleRegulated2718 – 363.34 – –
DatasheetMechanical Drawing3D Model
PLRA28SThrough HoleSingleRegulated2718 – 36285 – –
DatasheetMechanical Drawing3D Model
PLRA28DThrough HoleDualRegulated2718 – 36 – – 28/282.5/2.5
DatasheetMechanical Drawing3D Model
PLRA24SThrough HoleSingleRegulated2718 – 36245 – –
DatasheetMechanical Drawing3D Model
PLRA24DThrough HoleDualRegulated2718 – 36 – – 24/242.5/2.5
DatasheetMechanical Drawing3D Model
PLRA15SThrough HoleSingleRegulated2718 – 36155 – –
DatasheetMechanical Drawing3D Model
PLRA15DThrough HoleDualRegulated2718 – 36 – – 15/152.5/2.5
DatasheetMechanical Drawing3D Model
PLRA12SThrough HoleSingleRegulated2718 – 36125 – –
DatasheetMechanical Drawing3D Model
PLRA12DThrough HoleDualRegulated2718 – 36 – – 12/122.5/2.5
DatasheetMechanical Drawing3D Model
PLRA100SThrough HoleSingleRegulated2718 – 361005 – –
DatasheetMechanical Drawing3D Model
