DC-DC Converter Transformers

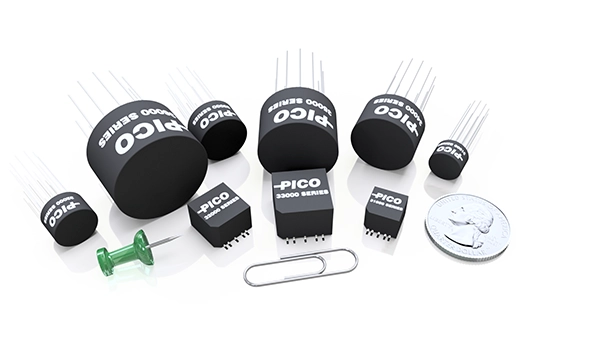

Pico DC-DC converter transformers are ultra-miniature in size as the energy driver to the switch-mode power supplies. They are power efficient in reducing core losses and able to be used in a wide variety of energy conversion applications. These are designed to maximum performance at low switching operating frequency and minimal losses. The electrical rectification process of these components are designed for bridge, dual-bridge, and full wave circuit configurations. Though, they are certainly not limited to these topologies.
Mounting
Input Voltage (VDC)
Output Voltage – Full-Wave (VDC)
Output Voltage – Bridge (VDC)
Max. Output Power (W)
| Part Number | Series | Mounting | Input DC Voltage (V) | Output DC Voltage – Bridge (V) | Output Voltage – Full-Wave (VDC) | Output DC Voltage – Dual Bridge (V) | Max. Output Power (W) @ -55°C to +105°C | Max. Output Power (W) @ -55°C to +70°C | Self-Saturating Frequency – Typ. (kHz) | Square Wave Driven Frequency – Typ. (Hz) | Dielectric Withstanding Voltage (Vrms) | Size (L x W x H) inches | Size (D x H) inches | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 36790 | 36000 | Through Hole | 48 | 100 | 50 | ± 50 | 25 | 40 | – | 30K to 60K | 300 | – | 1.13″ x 0.75″ | |
| 36770 | 36000 | Through Hole | 48 | 56 | 28 | ± 28 | 25 | 40 | – | 30K to 60K | 300 | – | 1.13″ x 0.75″ | |
| 36750 | 36000 | Through Hole | 48 | 48 | 24 | ± 24 | 25 | 40 | – | 30K to 60K | 200 | – | 1.13″ x 0.75″ | |
| 36730 | 36000 | Through Hole | 24 | 56 | 28 | ± 28 | 25 | 40 | – | 30K to 60K | 300 | – | 1.13″ x 0.75″ | |
| 36710 | 36000 | Through Hole | 24 | 48 | 24 | ± 24 | 25 | 40 | – | 30K to 60K | 200 | – | 1.13″ x 0.75″ | |
| 35270 | 35000 | Through Hole | 48 | 56 | 28 | ± 28 | 17 | 25 | – | 30K to 60K | 300 | – | 0.95″ x 0.65″ | |
| 35250 | 35000 | Through Hole | 48 | 48 | 24 | ± 24 | 17 | 25 | – | 30K to 60K | 200 | – | 0.95″ x 0.65″ | |
| 35230 | 35000 | Through Hole | 48 | 24 | 12 | ± 12 | 17 | 25 | – | 30K to 60K | 200 | – | 0.95″ x 0.65″ | |
| 35210 | 35000 | Through Hole | 24 | 48 | 24 | ± 24 | 17 | 25 | – | 30K to 60K | 200 | – | 0.95″ x 0.65″ | |
| 35190 | 35000 | Through Hole | 24 | 28 | 14 | ± 14 | 17 | 25 | – | 30K to 60K | 200 | – | 0.95″ x 0.65″ | |
| 35170 | 35000 | Through Hole | 24 | 24 | 12 | ± 12 | 17 | 25 | – | 30K to 60K | 200 | – | 0.95″ x 0.65″ | |
| 35150 | 35000 | Through Hole | 12 | 48 | 24 | ± 24 | 17 | 25 | – | 30K to 60K | 200 | – | 0.95″ x 0.65″ | |
| 35130 | 35000 | Through Hole | 12 | 28 | 14 | ± 14 | 17 | 25 | – | 30K to 60K | 200 | – | 0.95″ x 0.65″ | |
| 35110 | 35000 | Through Hole | 12 | 24 | 12 | ± 12 | 17 | 25 | – | 30K to 60K | 200 | – | 0.95″ x 0.65″ | |
| 34713 | 34000 | Through Hole | 48 | 300 | 150 | ± 150 | 7.5 | – | 10 | 30K to 60K | 900 | – | 0.80″ x 0.50″ | |
| 34710 | 34000 | Through Hole | 48 | 200 | 100 | ± 100 | 7.5 | – | 10 | 30K to 60K | 600 | – | 0.80″ x 0.50″ | |
| 34707 | 34000 | Through Hole | 48 | 150 | 75 | ± 75 | 7.5 | – | 10 | 30K to 60K | 500 | – | 0.80″ x 0.50″ | |
| 34704 | 34000 | Through Hole | 48 | 100 | 50 | ± 50 | 7.5 | – | 10 | 30K to 60K | 300 | – | 0.80″ x 0.50″ | |
| 34701 | 34000 | Through Hole | 48 | 56 | 28 | ± 28 | 10 | 14 | 15 | 30K to 50K | 300 | – | 0.80″ x 0.50″ | |
| 34681 | 34000 | Through Hole | 48 | 48 | 24 | ± 24 | 10 | 14 | 15 | 30K to 50K | 200 | – | 0.80″ x 0.50″ | |
| 34661 | 34000 | Through Hole | 48 | 24 | 12 | ± 12 | 10 | 14 | 15 | 30K to 50K | 200 | – | 0.80″ x 0.50″ | |
| 34653 | 34000 | Through Hole | 24 | 300 | 150 | ± 150 | 7.5 | – | 10 | 30K to 60K | 900 | – | 0.80″ x 0.50″ | |
| 34650 | 34000 | Through Hole | 24 | 200 | 100 | ± 100 | 7.5 | – | 10 | 30K to 60K | 600 | – | 0.80″ x 0.50″ | |
| 34647 | 34000 | Through Hole | 24 | 150 | 75 | ± 75 | 7.5 | – | 10 | 30K to 60K | 500 | – | 0.80″ x 0.50″ | |
| 34644 | 34000 | Through Hole | 24 | 100 | 50 | ± 50 | 7.5 | – | 10 | 30K to 60K | 300 | – | 0.80″ x 0.50″ | |
| 34641 | 34000 | Through Hole | 24 | 48 | 24 | ± 24 | 10 | 14 | 15 | 30K to 50K | 200 | – | 0.80″ x 0.50″ | |
| 34621 | 34000 | Through Hole | 24 | 28 | 14 | ± 14 | 10 | 14 | 15 | 30K to 50K | 200 | – | 0.80″ x 0.50″ | |
| 34613 | 34000 | Through Hole | 12 | 300 | 150 | ± 150 | 7.5 | – | 10 | 30K to 60K | 900 | – | 0.80″ x 0.50″ | |
| 34610 | 34000 | Through Hole | 12 | 200 | 100 | ± 100 | 7.5 | – | 10 | 30K to 60K | 600 | – | 0.80″ x 0.50″ | |
| 34607 | 34000 | Through Hole | 12 | 150 | 75 | ± 75 | 7.5 | – | 10 | 30K to 60K | 500 | – | 0.80″ x 0.50″ | |
| 34604 | 34000 | Through Hole | 12 | 100 | 50 | ± 50 | 7.5 | – | 10 | 30K to 60K | 300 | – | 0.80″ x 0.50″ | |
| 34601 | 34000 | Through Hole | 12 | 48 | 24 | ± 24 | 10 | 14 | 15 | 30K to 50K | 200 | – | 0.80″ x 0.50″ | |
| 34581 | 34000 | Through Hole | 12 | 28 | 14 | ± 14 | 10 | 14 | 15 | 30K to 50K | 200 | – | 0.80″ x 0.50″ | |
| 34561 | 34000 | Through Hole | 12 | 24 | 12 | ± 12 | 10 | 14 | 15 | 30K to 50K | 200 | – | 0.80″ x 0.50″ | |
| 34541 | 34000 | Through Hole | 5 | 48 | 24 | ± 24 | 10 | 14 | 10 | 20K to 40K | 200 | – | 0.80″ x 0.50″ | |
| 34521 | 34000 | Through Hole | 5 | 28 | 14 | ± 14 | 10 | 14 | 10 | 20K to 40K | 200 | – | 0.80″ x 0.50″ | |
| 34501 | 34000 | Through Hole | 5 | 10 | 5 | ± 5 | 10 | 14 | 10 | 20K to 40K | 200 | – | 0.80″ x 0.50″ | |
| 33829 | 33000 | Surface Mount | 48 | 300 | 150 | ± 150 | 5 | – | 10 | 30K to 60K | 900 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33826 | 33000 | Surface Mount | 48 | 200 | 100 | ± 100 | 5 | – | 10 | 30K to 60K | 600 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33823 | 33000 | Surface Mount | 48 | 150 | 75 | ± 75 | 5 | 7.5 | 20 | 40K to 60K | 500 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33803 | 33000 | Surface Mount | 48 | 100 | 50 | ± 50 | 5 | 7.5 | 20 | 40K to 60K | 300 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33783 | 33000 | Surface Mount | 48 | 48 | 24 | ± 24 | 5 | 7.5 | 20 | 40K to 60K | 200 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33763 | 33000 | Surface Mount | 48 | 24 | 12 | ± 12 | 5 | 7.5 | 15 | 30K to 60K | 200 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33752 | 33000 | Surface Mount | 24 | 300 | 150 | ± 150 | 5 | – | 10 | 30K to 60K | 900 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33749 | 33000 | Surface Mount | 24 | 200 | 100 | ± 100 | 5 | – | 10 | 30K to 60K | 600 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33746 | 33000 | Surface Mount | 24 | 150 | 75 | ± 75 | 5 | – | 10 | 30K to 60K | 500 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33743 | 33000 | Surface Mount | 24 | 100 | 50 | ± 50 | 5 | 7.5 | 20 | 40K to 60K | 300 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33723 | 33000 | Surface Mount | 24 | 48 | 24 | ± 24 | 5 | 7.5 | 20 | 40K to 60K | 200 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33703 | 33000 | Surface Mount | 24 | 28 | 14 | ± 14 | 5 | 7.5 | 15 | 30K to 60K | 200 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33683 | 33000 | Surface Mount | 24 | 10 | 5 | ± 5 | 5 | 7.5 | 15 | 30K to 60K | 200 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33672 | 33000 | Surface Mount | 12 | 300 | 150 | ± 150 | 5 | – | 10 | 30K to 60K | 900 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33669 | 33000 | Surface Mount | 12 | 200 | 100 | ± 100 | 5 | – | 10 | 30K to 60K | 600 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33666 | 33000 | Surface Mount | 12 | 150 | 75 | ± 75 | 5 | – | 10 | 30K to 60K | 500 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33663 | 33000 | Surface Mount | 12 | 100 | 50 | ± 50 | 5 | 7.5 | 20 | 40K to 60K | 300 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33643 | 33000 | Surface Mount | 12 | 48 | 24 | ± 24 | 5 | 7.5 | 20 | 40K to 60K | 200 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33623 | 33000 | Surface Mount | 12 | 28 | 14 | ± 14 | 5 | 7.5 | 15 | 30K to 60K | 200 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33603 | 33000 | Surface Mount | 12 | 12 | 6 | ± 6 | 5 | 7.5 | 15 | 30K to 60K | 200 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33592 | 33000 | Surface Mount | 5 | 300 | 150 | ± 150 | 5 | – | 10 | 30K to 60K | 900 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33589 | 33000 | Surface Mount | 5 | 200 | 100 | ± 100 | 5 | – | 10 | 30K to 60K | 600 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33586 | 33000 | Surface Mount | 5 | 150 | 75 | ± 75 | 5 | – | 10 | 30K to 60K | 500 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33583 | 33000 | Surface Mount | 5 | 100 | 50 | ± 50 | 5 | 7.5 | 10 | 20K to 50K | 300 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33563 | 33000 | Surface Mount | 5 | 48 | 24 | ± 24 | 5 | 7.5 | 10 | 20K to 50K | 200 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33543 | 33000 | Surface Mount | 5 | 28 | 14 | ± 14 | 5 | 7.5 | 10 | 20K to 50K | 200 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33523 | 33000 | Surface Mount | 5 | 12 | 6 | ± 6 | 5 | 7.5 | 10 | 20K to 50K | 200 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33503 | 33000 | Surface Mount | 5 | 10 | 5 | ± 5 | 5 | 7.5 | 10 | 20K to 50K | 200 | 0.62″ x 0.62″ x 0.46″ | – | |
| 33430 | 33000 | Through Hole | 48 | 300 | 150 | ± 150 | 5 | – | 10 | 30K to 60K | 900 | – | 0.63″ x 0.42″ | |
| 33427 | 33000 | Through Hole | 48 | 200 | 100 | ± 100 | 5 | – | 10 | 30K to 60K | 600 | – | 0.63″ x 0.42″ | |
| 33424 | 33000 | Through Hole | 48 | 150 | 75 | ± 75 | 5 | 7.5 | 20 | 40K to 60K | 500 | – | 0.63″ x 0.42″ | |
| 33404 | 33000 | Through Hole | 48 | 100 | 50 | ± 50 | 5 | 7.5 | 20 | 40K to 60K | 300 | – | 0.63″ x 0.42″ | |
| 33384 | 33000 | Through Hole | 48 | 48 | 24 | ± 24 | 5 | 7.5 | 20 | 40K to 60K | 200 | – | 0.63″ x 0.42″ | |
| 33364 | 33000 | Through Hole | 48 | 24 | 12 | ± 12 | 5 | 7.5 | 15 | 30K to 60K | 200 | – | 0.63″ x 0.42″ | |
| 33353 | 33000 | Through Hole | 24 | 300 | 150 | ± 150 | 5 | – | 10 | 30K to 60K | 900 | – | 0.63″ x 0.42″ | |
| 33350 | 33000 | Through Hole | 24 | 200 | 100 | ± 100 | 5 | – | 10 | 30K to 60K | 600 | – | 0.63″ x 0.42″ | |
| 33347 | 33000 | Through Hole | 24 | 150 | 75 | ± 75 | 5 | – | 10 | 30K to 60K | 500 | – | 0.63″ x 0.42″ | |
| 33344 | 33000 | Through Hole | 24 | 100 | 50 | ± 50 | 5 | 7.5 | 20 | 40K to 60K | 300 | – | 0.63″ x 0.42″ | |
| 33324 | 33000 | Through Hole | 24 | 48 | 24 | ± 24 | 5 | 7.5 | 20 | 40K to 60K | 200 | – | 0.63″ x 0.42″ | |
| 33304 | 33000 | Through Hole | 24 | 28 | 14 | ± 14 | 5 | 7.5 | 15 | 30K to 60K | 200 | – | 0.63″ x 0.42″ | |
| 33284 | 33000 | Through Hole | 24 | 10 | 5 | ± 5 | 5 | 7.5 | 15 | 30K to 60K | 200 | – | 0.63″ x 0.42″ | |
| 33273 | 33000 | Through Hole | 12 | 300 | 150 | ± 150 | 5 | – | 10 | 30K to 60K | 900 | – | 0.63″ x 0.42″ | |
| 33270 | 33000 | Through Hole | 12 | 200 | 100 | ± 100 | 5 | – | 10 | 30K to 60K | 600 | – | 0.63″ x 0.42″ | |
| 33267 | 33000 | Through Hole | 12 | 150 | 75 | ± 75 | 5 | – | 10 | 30K to 60K | 500 | – | 0.63″ x 0.42″ | |
| 33264 | 33000 | Through Hole | 12 | 100 | 50 | ± 50 | 5 | 7.5 | 20 | 40K to 60K | 300 | – | 0.63″ x 0.42″ | |
| 33244 | 33000 | Through Hole | 12 | 48 | 24 | ± 24 | 5 | 7.5 | 20 | 40K to 60K | 200 | – | 0.63″ x 0.42″ | |
| 33224 | 33000 | Through Hole | 12 | 28 | 14 | ± 14 | 5 | 7.5 | 15 | 30K to 60K | 200 | – | 0.63″ x 0.42″ | |
| 33204 | 33000 | Through Hole | 12 | 12 | 6 | ± 6 | 5 | 7.5 | 15 | 30K to 60K | 200 | – | 0.63″ x 0.42″ | |
| 33193 | 33000 | Through Hole | 5 | 300 | 150 | ± 150 | 5 | – | 10 | 30K to 60K | 900 | – | 0.63″ x 0.42″ | |
| 33190 | 33000 | Through Hole | 5 | 200 | 100 | ± 100 | 5 | – | 10 | 30K to 60K | 600 | – | 0.63″ x 0.42″ | |
| 33187 | 33000 | Through Hole | 5 | 150 | 75 | ± 75 | 5 | – | 10 | 30K to 60K | 500 | – | 0.63″ x 0.42″ | |
| 33184 | 33000 | Through Hole | 5 | 100 | 50 | ± 50 | 5 | 7.5 | 10 | 20K to 50K | 300 | – | 0.63″ x 0.42″ | |
| 33164 | 33000 | Through Hole | 5 | 48 | 24 | ± 24 | 5 | 7.5 | 10 | 20K to 50K | 200 | – | 0.63″ x 0.42″ | |
| 33144 | 33000 | Through Hole | 5 | 28 | 14 | ± 14 | 5 | 7.5 | 10 | 20K to 50K | 200 | – | 0.63″ x 0.42″ | |
| 33124 | 33000 | Through Hole | 5 | 12 | 6 | ± 6 | 5 | 7.5 | 10 | 20K to 50K | 200 | – | 0.63″ x 0.42″ | |
| 33104 | 33000 | Through Hole | 5 | 10 | 5 | ± 5 | 5 | 7.5 | 10 | 20K to 50K | 200 | – | 0.63″ x 0.42″ | |
| 32851 | 32000 | Surface Mount | 48 | 300 | 150 | ± 150 | 3 | 4.5 | 10 | 30K to 60K | 900 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32848 | 32000 | Surface Mount | 48 | 200 | 100 | ± 100 | 3 | 4.5 | 10 | 30K to 60K | 600 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32845 | 32000 | Surface Mount | 48 | 150 | 75 | ± 75 | 3 | 4.5 | 20 | 40K to 60K | 500 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32825 | 32000 | Surface Mount | 48 | 100 | 50 | ± 50 | 3 | 4.5 | 20 | 40K to 60K | 300 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32805 | 32000 | Surface Mount | 48 | 48 | 24 | ± 24 | 3 | 4.5 | 20 | 40K to 60K | 200 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32785 | 32000 | Surface Mount | 48 | 24 | 12 | ± 12 | 3 | 4.5 | 15 | 30K to 60K | 200 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32774 | 32000 | Surface Mount | 24 | 300 | 150 | ± 150 | 3 | – | 10 | 30K to 60K | 900 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32771 | 32000 | Surface Mount | 24 | 200 | 100 | ± 100 | 3 | – | 10 | 30K to 60K | 600 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32768 | 32000 | Surface Mount | 24 | 150 | 75 | ± 75 | 3 | – | 10 | 30K to 60K | 500 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32765 | 32000 | Surface Mount | 24 | 100 | 50 | ± 50 | 3 | 4.5 | 20 | 40K to 60K | 300 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32745 | 32000 | Surface Mount | 24 | 48 | 24 | ± 24 | 3 | 4.5 | 20 | 40K to 60K | 200 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32725 | 32000 | Surface Mount | 24 | 28 | 14 | ± 14 | 3 | 4.5 | 15 | 30K to 60K | 200 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32705 | 32000 | Surface Mount | 24 | 10 | 5 | ± 5 | 3 | 4.5 | 15 | 30K to 60K | 200 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32694 | 32000 | Surface Mount | 12 | 300 | 150 | ± 150 | 3 | – | 10 | 30K to 60K | 900 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32691 | 32000 | Surface Mount | 12 | 200 | 100 | ± 100 | 3 | – | 10 | 30K to 60K | 600 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32688 | 32000 | Surface Mount | 12 | 150 | 75 | ± 75 | 3 | – | 10 | 30K to 60K | 500 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32685 | 32000 | Surface Mount | 12 | 100 | 50 | ± 50 | 3 | 4.5 | 20 | 40K to 60K | 300 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32665 | 32000 | Surface Mount | 12 | 48 | 24 | ± 24 | 3 | 4.5 | 20 | 40K to 60K | 200 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32645 | 32000 | Surface Mount | 12 | 28 | 14 | ± 14 | 3 | 4.5 | 15 | 30K to 60K | 200 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32625 | 32000 | Surface Mount | 12 | 24 | 12 | ± 12 | 3 | 4.5 | 15 | 30K to 60K | 200 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32605 | 32000 | Surface Mount | 12 | 12 | 6 | ± 6 | 3 | 4.5 | 15 | 30K to 60K | 200 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32594 | 32000 | Surface Mount | 5 | 300 | 150 | ± 150 | 3 | – | 10 | 30K to 60K | 900 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32591 | 32000 | Surface Mount | 5 | 200 | 100 | ± 100 | 3 | – | 10 | 30K to 60K | 600 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32588 | 32000 | Surface Mount | 5 | 150 | 75 | ± 75 | 3 | – | 10 | 30K to 60K | 500 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32585 | 32000 | Surface Mount | 5 | 100 | 50 | ± 50 | 3 | 4.5 | 20 | 40K to 60K | 300 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32565 | 32000 | Surface Mount | 5 | 48 | 24 | ± 24 | 3 | 4.5 | 20 | 40K to 60K | 200 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32545 | 32000 | Surface Mount | 5 | 28 | 14 | ± 14 | 3 | 4.5 | 15 | 30K to 60K | 200 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32525 | 32000 | Surface Mount | 5 | 12 | 6 | ± 6 | 3 | 4.5 | 15 | 30K to 60K | 200 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32505 | 32000 | Surface Mount | 5 | 10 | 5 | ± 5 | 3 | 4.5 | 15 | 30K to 60K | 200 | 0.50″ x 0.50″ x 0.37″ | – | |
| 32452 | 32000 | Through Hole | 48 | 300 | 150 | ± 150 | 3 | 4.5 | 10 | 30K to 60K | 900 | – | 0.50″ x 0.34″ | |
| 32449 | 32000 | Through Hole | 48 | 200 | 100 | ± 100 | 3 | 4.5 | 10 | 30K to 60K | 600 | – | 0.50″ x 0.34″ | |
| 32446 | 32000 | Through Hole | 48 | 150 | 75 | ± 75 | 3 | 4.5 | 20 | 40K to 60K | 500 | – | 0.50″ x 0.34″ | |
| 32426 | 32000 | Through Hole | 48 | 100 | 50 | ± 50 | 3 | 4.5 | 20 | 40K to 60K | 300 | – | 0.50″ x 0.34″ | |
| 32406 | 32000 | Through Hole | 48 | 48 | 24 | ± 24 | 3 | 4.5 | 20 | 40K to 60K | 200 | – | 0.50″ x 0.34″ | |
| 32386 | 32000 | Through Hole | 48 | 24 | 12 | ± 12 | 3 | 4.5 | 15 | 30K to 60K | 200 | – | 0.50″ x 0.34″ | |
| 32375 | 32000 | Through Hole | 24 | 300 | 150 | ± 150 | 3 | – | 10 | 30K to 60K | 900 | – | 0.50″ x 0.34″ | |
| 32372 | 32000 | Through Hole | 24 | 200 | 100 | ± 100 | 3 | – | 10 | 30K to 60K | 600 | – | 0.50″ x 0.34″ | |
| 32369 | 32000 | Through Hole | 24 | 150 | 75 | ± 75 | 3 | – | 10 | 30K to 60K | 500 | – | 0.50″ x 0.34″ | |
| 32366 | 32000 | Through Hole | 24 | 100 | 50 | ± 50 | 3 | 4.5 | 20 | 40K to 60K | 300 | – | 0.50″ x 0.34″ | |
| 32346 | 32000 | Through Hole | 24 | 48 | 24 | ± 24 | 3 | 4.5 | 20 | 40K to 60K | 200 | – | 0.50″ x 0.34″ | |
| 32326 | 32000 | Through Hole | 24 | 28 | 14 | ± 14 | 3 | 4.5 | 15 | 30K to 60K | 200 | – | 0.50″ x 0.34″ | |
| 32306 | 32000 | Through Hole | 24 | 10 | 5 | ± 5 | 3 | 4.5 | 15 | 30K to 60K | 200 | – | 0.50″ x 0.34″ | |
| 32295 | 32000 | Through Hole | 12 | 300 | 150 | ± 150 | 3 | – | 10 | 30K to 60K | 900 | – | 0.50″ x 0.34″ | |
| 32292 | 32000 | Through Hole | 12 | 200 | 100 | ± 100 | 3 | – | 10 | 30K to 60K | 600 | – | 0.50″ x 0.34″ | |
| 32289 | 32000 | Through Hole | 12 | 150 | 75 | ± 75 | 3 | – | 10 | 30K to 60K | 500 | – | 0.50″ x 0.34″ | |
| 32286 | 32000 | Through Hole | 12 | 100 | 50 | ± 50 | 3 | 4.5 | 20 | 40K to 60K | 300 | – | 0.50″ x 0.34″ | |
| 32266 | 32000 | Through Hole | 12 | 48 | 24 | ± 24 | 3 | 4.5 | 20 | 40K to 60K | 200 | – | 0.50″ x 0.34″ | |
| 32246 | 32000 | Through Hole | 12 | 28 | 14 | ± 14 | 3 | 4.5 | 15 | 30K to 60K | 200 | – | 0.50″ x 0.34″ | |
| 32226 | 32000 | Through Hole | 12 | 24 | 12 | ± 12 | 3 | 4.5 | 15 | 30K to 60K | 200 | – | 0.50″ x 0.34″ | |
| 32206 | 32000 | Through Hole | 12 | 12 | 6 | ± 6 | 3 | 4.5 | 15 | 30K to 60K | 200 | – | 0.50″ x 0.34″ | |
| 32195 | 32000 | Through Hole | 5 | 300 | 150 | ± 150 | 3 | – | 10 | 30K to 60K | 900 | – | 0.50″ x 0.34″ | |
| 32192 | 32000 | Through Hole | 5 | 200 | 100 | ± 100 | 3 | – | 10 | 30K to 60K | 600 | – | 0.50″ x 0.34″ | |
| 32189 | 32000 | Through Hole | 5 | 150 | 75 | ± 75 | 3 | – | 10 | 30K to 60K | 500 | – | 0.50″ x 0.34″ | |
| 32186 | 32000 | Through Hole | 5 | 100 | 50 | ± 50 | 3 | 4.5 | 20 | 40K to 60K | 300 | – | 0.50″ x 0.34″ | |
| 32166 | 32000 | Through Hole | 5 | 48 | 24 | ± 24 | 3 | 4.5 | 20 | 40K to 60K | 200 | – | 0.50″ x 0.34″ | |
| 32146 | 32000 | Through Hole | 5 | 28 | 14 | ± 14 | 3 | 4.5 | 15 | 30K to 60K | 200 | – | 0.50″ x 0.34″ | |
| 32126 | 32000 | Through Hole | 5 | 12 | 6 | ± 6 | 3 | 4.5 | 15 | 30K to 60K | 200 | – | 0.50″ x 0.34″ | |
| 32106 | 32000 | Through Hole | 5 | 10 | 5 | ± 5 | 3 | 4.5 | 15 | 30K to 60K | 200 | – | 0.50″ x 0.34″ | |
| 31760 | 31000 | Surface Mount | 48 | 150 | 75 | ± 75 | 1.5 | 3 | 20 | 40K to 60K | 500 | 0.40″ x 0.40″ x 0.31″ | – | |
| 31740 | 31000 | Surface Mount | 48 | 100 | 50 | ± 50 | 1.5 | 3 | 20 | 40K to 60K | 300 | 0.40″ x 0.40″ x 0.31″ | – | |
| 31720 | 31000 | Surface Mount | 48 | 48 | 24 | ± 24 | 1.5 | 3 | 20 | 40Kto 60K | 200 | 0.40″ x 0.40″ x 0.31″ | – | |
| 31700 | 31000 | Surface Mount | 48 | 24 | 12 | ± 12 | 1.5 | 3 | 15 | 30K to 60K | 200 | 0.40″ x 0.40″ x 0.31″ | – | |
| 31680 | 31000 | Surface Mount | 24 | 100 | 50 | ± 50 | 1.5 | 3 | 20 | 40K to 60K | 300 | 0.40″ x 0.40″ x 0.31″ | – | |
| 31660 | 31000 | Surface Mount | 24 | 48 | 24 | ± 24 | 1.5 | 3 | 20 | 40K to 60K | 200 | 0.40″ x 0.40″ x 0.31″ | – | |
| 31640 | 31000 | Surface Mount | 24 | 28 | 14 | ± 14 | 1.5 | 3 | 15 | 30K to 60K | 200 | 0.40″ x 0.40″ x 0.31″ | – | |
| 31620 | 31000 | Surface Mount | 24 | 10 | 5 | ± 5 | 1.5 | 3 | 15 | 30K to 60K | 200 | 0.40″ x 0.40″ x 0.31″ | – | |
| 31600 | 31000 | Surface Mount | 12 | 100 | 50 | ± 50 | 1.5 | 3 | 20 | 40K to 60K | 300 | 0.40″ x 0.40″ x 0.31″ | – | |
| 31580 | 31000 | Surface Mount | 12 | 48 | 24 | ± 24 | 1.5 | 3 | 20 | 40K to 60K | 200 | 0.40″ x 0.40″ x 0.31″ | – | |
| 31560 | 31000 | Surface Mount | 12 | 28 | 14 | ± 14 | 1.5 | 3 | 15 | 30K to 60K | 200 | 0.40″ x 0.40″ x 0.31″ | – | |
| 31540 | 31000 | Surface Mount | 12 | 24 | 12 | ± 12 | 1.5 | 3 | 15 | 30K to 60K | 200 | 0.40″ x 0.40″ x 0.31″ | – | |
| 31520 | 31000 | Surface Mount | 12 | 12 | 6 | ± 6 | 1.5 | 3 | 15 | 30K to 60K | 200 | 0.40″ x 0.40″ x 0.31″ | – | |
| 31500 | 31000 | Surface Mount | 5 | 100 | 50 | ± 50 | 1.5 | 3 | 20 | 40K to 60K | 300 | 0.40″ x 0.40″ x 0.31″ | – | |
| 31480 | 31000 | Surface Mount | 5 | 48 | 24 | ± 24 | 1.5 | 3 | 20 | 40K to 60K | 200 | 0.40″ x 0.40″ x 0.31″ | – | |
| 31460 | 31000 | Surface Mount | 5 | 28 | 14 | ± 14 | 1.5 | 3 | 15 | 30K to 60K | 200 | 0.40″ x 0.40″ x 0.31″ | – | |
| 31440 | 31000 | Surface Mount | 5 | 12 | 6 | ± 6 | 1.5 | 3 | 15 | 30K to 60K | 200 | 0.40″ x 0.40″ x 0.31″ | – | |
| 31420 | 31000 | Surface Mount | 5 | 10 | 5 | ± 5 | 1.5 | 3 | 15 | 30K to 60K | 200 | 0.40″ x 0.40″ x 0.31″ | – | |
| 31361 | 31000 | Through Hole | 48 | 150 | 75 | ± 75 | 1.5 | 3 | 20 | 40K to 60K | 500 | – | 0.41″ x 0.28″ | |
| 31341 | 31000 | Through Hole | 48 | 100 | 50 | ± 50 | 1.5 | 3 | 20 | 40K to 60K | 300 | – | 0.41″ x 0.28″ | |
| 31321 | 31000 | Through Hole | 48 | 48 | 24 | ± 24 | 1.5 | 3 | 20 | 40K to 60K | 200 | – | 0.41″ x 0.28″ | |
| 31301 | 31000 | Through Hole | 48 | 24 | 12 | ± 12 | 1.5 | 3 | 15 | 30K to 60K | 200 | – | 0.41″ x 0.28″ | |
| 31281 | 31000 | Through Hole | 24 | 100 | 50 | ± 50 | 1.5 | 3 | 20 | 40K to 60K | 300 | – | 0.41″ x 0.28″ | |
| 31261 | 31000 | Through Hole | 24 | 48 | 24 | ± 24 | 1.5 | 3 | 20 | 40K to 60K | 200 | – | 0.41″ x 0.28″ | |
| 31241 | 31000 | Through Hole | 24 | 28 | 14 | ± 14 | 1.5 | 3 | 15 | 30K to 60K | 200 | – | 0.41″ x 0.28″ | |
| 31221 | 31000 | Through Hole | 24 | 10 | 5 | ± 5 | 1.5 | 3 | 15 | 30K to 60K | 200 | – | 0.41″ x 0.28″ | |
| 31201 | 31000 | Through Hole | 12 | 100 | 50 | ± 50 | 1.5 | 3 | 20 | 40K to 60K | 300 | – | 0.41″ x 0.28″ | |
| 31181 | 31000 | Through Hole | 12 | 48 | 24 | ± 24 | 1.5 | 3 | 20 | 40K to 60K | 200 | – | 0.41″ x 0.28″ | |
| 31161 | 31000 | Through Hole | 12 | 28 | 14 | ± 14 | 1.5 | 3 | 15 | 30K to 60K | 200 | – | 0.41″ x 0.28″ | |
| 31141 | 31000 | Through Hole | 12 | 24 | 12 | ± 12 | 1.5 | 3 | 15 | 30K to 60K | 200 | – | 0.41″ x 0.28″ | |
| 31121 | 31000 | Through Hole | 12 | 12 | 6 | ± 6 | 1.5 | 3 | 15 | 30K to 60K | 200 | – | 0.41″ x 0.28″ | |
| 31101 | 31000 | Through Hole | 5 | 100 | 50 | ± 50 | 1.5 | 3 | 20 | 40K to 60K | 300 | – | 0.41″ x 0.28″ | |
| 31081 | 31000 | Through Hole | 5 | 48 | 24 | ± 24 | 1.5 | 3 | 20 | 40K to 60K | 200 | – | 0.41″ x 0.28″ | |
| 31061 | 31000 | Through Hole | 5 | 28 | 14 | ± 14 | 1.5 | 3 | 15 | 30K to 60K | 200 | – | 0.41″ x 0.28″ | |
| 31041 | 31000 | Through Hole | 5 | 12 | 6 | ± 6 | 1.5 | 3 | 15 | 30K to 60K | 200 | – | 0.41″ x 0.28″ | |
| 31021 | 31000 | Through Hole | 5 | 10 | 5 | ± 5 | 1.5 | 3 | 15 | 30K to 60K | 200 | – | 0.41″ x 0.28″ |
