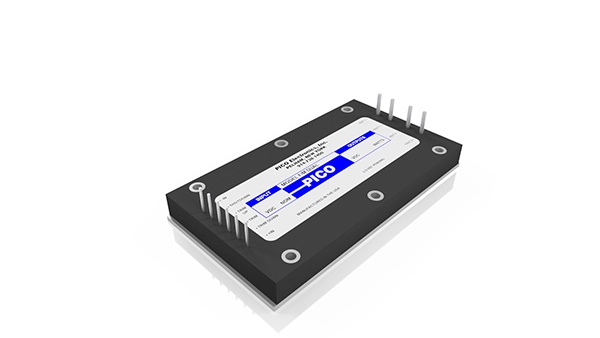

Series F/M

100W Isolated Regulated High Power DC-DC Converter

The F/M series are isolated DC-DC converters with a wide selection of input voltage ranges from 18V to 380V in a low profile full brick size – 4.6″ x 2.5″ x 0.5″. These modules have trim capability and shutdown features. Protections include input overvoltage, output short-circuit, output overvoltage and over temperature.

The unique case has integrated side heat sink for better thermal dissipation but is capable of conduction cooling through the baseplate or additional top mounted heat sink.

Download Datasheet

Compatible Heat SinksCH, CV

Compatible Thermal InterfacesTI

Features

18V to 380V input range models
3.3V to 350V output models
Up to 200W output
Input/output isolation
Parallel operation option
Single and dual isolated outputs
Trim capability
Remote shutdown feature
Fixed operating frequency
No external components required

Options

Expanded operating temperature: -55°C to +85°C
Select screening per MIL-STD-883:
- Stabilization Bake: Ref. Method 1008
- Temperature Cycle: Ref. Method 1010
- Burn-In: Ref. Method 1015
Special Input Voltage, Output Voltage, Isolation Voltage or Output Power
Parallel Operation

Part Number	Mounting	# of Outputs	Temperature Range	Nominal Input Voltage (VDC)	Input Voltage Range (VDC)	Single Output Voltage (VDC)	Single Max Output Power (W)	Dual Output Voltage (VDC)	Dual Max Output Power (W)	Downloads
MD9S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	9	100	–	–	Datasheet Mechanical Drawing 3D Model
MD9D	Through Hole	Dual	-55°C to +85°C Baseplate	300	200 – 380	–	–	9/9	50/50	Datasheet Mechanical Drawing 3D Model
MD5S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	5	75	–	–	Datasheet Mechanical Drawing 3D Model
MD5D	Through Hole	Dual	-55°C to +85°C Baseplate	300	200 – 380	–	–	5/5	37.5/37.5	Datasheet Mechanical Drawing 3D Model
MD5.2S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	5.2	75	–	–	Datasheet Mechanical Drawing 3D Model
MD48S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	48	100	–	–	Datasheet Mechanical Drawing 3D Model
MD48D	Through Hole	Dual	-55°C to +85°C Baseplate	300	200 – 380	–	–	48/48	50/50	Datasheet Mechanical Drawing 3D Model
MD350S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	350	100	–	–	Datasheet Mechanical Drawing 3D Model
MD325S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	325	100	–	–	Datasheet Mechanical Drawing 3D Model
MD300S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	300	100	–	–	Datasheet Mechanical Drawing 3D Model
MD3.3S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	3.3	50	–	–	Datasheet Mechanical Drawing 3D Model
MD28S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	28	100	–	–	Datasheet Mechanical Drawing 3D Model
MD28D	Through Hole	Dual	-55°C to +85°C Baseplate	300	200 – 380	–	–	28/28	50/50	Datasheet Mechanical Drawing 3D Model
MD275S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	275	100	–	–	Datasheet Mechanical Drawing 3D Model
MD250S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	250	100	–	–	Datasheet Mechanical Drawing 3D Model
MD24S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	24	100	–	–	Datasheet Mechanical Drawing 3D Model
MD24D	Through Hole	Dual	-55°C to +85°C Baseplate	300	200 – 380	–	–	24/24	50/50	Datasheet Mechanical Drawing 3D Model
MD225S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	225	100	–	–	Datasheet Mechanical Drawing 3D Model
MD200S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	200	100	–	–	Datasheet Mechanical Drawing 3D Model
MD175S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	175	100	–	–	Datasheet Mechanical Drawing 3D Model
MD15S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	15	100	–	–	Datasheet Mechanical Drawing 3D Model
MD15D	Through Hole	Dual	-55°C to +85°C Baseplate	300	200 – 380	–	–	15/15	50/50	Datasheet Mechanical Drawing 3D Model
MD150S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	150	100	–	–	Datasheet Mechanical Drawing 3D Model
MD12S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	12	100	–	–	Datasheet Mechanical Drawing 3D Model
MD12D	Through Hole	Dual	-55°C to +85°C Baseplate	300	200 – 380	–	–	12/12	50/50	Datasheet Mechanical Drawing 3D Model
MD125S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	125	100	–	–	Datasheet Mechanical Drawing 3D Model
MD100S	Through Hole	Single	-55°C to +85°C Baseplate	300	200 – 380	100	100	–	–	Datasheet Mechanical Drawing 3D Model
MC9S	Through Hole	Single	-55°C to +85°C Baseplate	150	100 – 180	9	100	–	–	Datasheet Mechanical Drawing 3D Model
MC9D	Through Hole	Dual	-55°C to +85°C Baseplate	150	100 – 180	–	–	9/9	50/50	Datasheet Mechanical Drawing 3D Model
MC5S	Through Hole	Single	-55°C to +85°C Baseplate	150	100 – 180	5	75	–	–	Datasheet Mechanical Drawing 3D Model
MC5D	Through Hole	Dual	-55°C to +85°C Baseplate	150	100 – 180	–	–	5/5	37.5/37.5	Datasheet Mechanical Drawing 3D Model
MC5.2S	Through Hole	Single	-55°C to +85°C Baseplate	150	100 – 180	5.2	75	–	–	Datasheet Mechanical Drawing 3D Model
MC48S	Through Hole	Single	-55°C to +85°C Baseplate	150	100 – 180	48	100	–	–	Datasheet Mechanical Drawing 3D Model
MC48D	Through Hole	Dual	-55°C to +85°C Baseplate	150	100 – 180	–	–	48/48	50/50	Datasheet Mechanical Drawing 3D Model
MC300S	Through Hole	Single	-55°C to +85°C Baseplate	150	100 – 180	300	100	–	–	Datasheet Mechanical Drawing 3D Model
MC3.3S	Through Hole	Single	-55°C to +85°C Baseplate	150	100 – 180	3.3	50	–	–	Datasheet Mechanical Drawing 3D Model
MC28S	Through Hole	Single	-55°C to +85°C Baseplate	150	100 – 180	28	100	–	–	Datasheet Mechanical Drawing 3D Model
MC28D	Through Hole	Dual	-55°C to +85°C Baseplate	150	100 – 180	–	–	28/28	50/50	Datasheet Mechanical Drawing 3D Model
MC275S	Through Hole	Single	-55°C to +85°C Baseplate	150	100 – 180	275	100	–	–	Datasheet Mechanical Drawing 3D Model
MC250S	Through Hole	Single	-55°C to +85°C Baseplate	150	100 – 180	250	100	–	–	Datasheet Mechanical Drawing 3D Model
MC24S	Through Hole	Single	-55°C to +85°C Baseplate	150	100 – 180	24	100	–	–	Datasheet Mechanical Drawing 3D Model
MC24D	Through Hole	Dual	-55°C to +85°C Baseplate	150	100 – 180	–	–	24/24	50/50	Datasheet Mechanical Drawing 3D Model
MC225S	Through Hole	Single	-55°C to +85°C Baseplate	150	100 – 180	225	100	–	–	Datasheet Mechanical Drawing 3D Model
MC200S	Through Hole	Single	-55°C to +85°C Baseplate	150	100 – 180	200	100	–	–	Datasheet Mechanical Drawing 3D Model
MC175S	Through Hole	Single	-55°C to +85°C Baseplate	150	100 – 180	175	100	–	–	Datasheet Mechanical Drawing 3D Model
MC15S	Through Hole	Single	-55°C to +85°C Baseplate	150	100 – 180	15	100	–	–	Datasheet Mechanical Drawing 3D Model
MC15D	Through Hole	Dual	-55°C to +85°C Baseplate	150	100 – 180	–	–	15/15	50/50	Datasheet Mechanical Drawing 3D Model
MC150S	Through Hole	Single	-55°C to +85°C Baseplate	150	100 – 180	150	100	–	–	Datasheet Mechanical Drawing 3D Model
MC12S	Through Hole	Single	-55°C to +85°C Baseplate	150	100 – 180	12	100	–	–	Datasheet Mechanical Drawing 3D Model
MC12D	Through Hole	Dual	-55°C to +85°C Baseplate	150	100 – 180	–	–	12/12	50/50	Datasheet Mechanical Drawing 3D Model
MC125S	Through Hole	Single	-55°C to +85°C Baseplate	150	100 – 180	125	100	–	–	Datasheet Mechanical Drawing 3D Model
MC100S	Through Hole	Single	-55°C to +85°C Baseplate	150	100 – 180	100	100	–	–	Datasheet Mechanical Drawing 3D Model
MB9S	Through Hole	Single	-55°C to +85°C Baseplate	48	36 – 72	9	100	–	–	Datasheet Mechanical Drawing 3D Model
MB9D	Through Hole	Dual	-55°C to +85°C Baseplate	48	36 – 72	–	–	9/9	50/50	Datasheet Mechanical Drawing 3D Model
MB5S	Through Hole	Single	-55°C to +85°C Baseplate	48	36 – 72	5	75	–	–	Datasheet Mechanical Drawing 3D Model
MB5D	Through Hole	Dual	-55°C to +85°C Baseplate	48	36 – 72	–	–	5/5	37.5/37.5	Datasheet Mechanical Drawing 3D Model
MB5.2S	Through Hole	Single	-55°C to +85°C Baseplate	48	36 – 72	5.2	75	–	–	Datasheet Mechanical Drawing 3D Model
MB48S	Through Hole	Single	-55°C to +85°C Baseplate	48	36 – 72	48	100	–	–	Datasheet Mechanical Drawing 3D Model
MB48D	Through Hole	Dual	-55°C to +85°C Baseplate	48	36 – 72	–	–	48/48	50/50	Datasheet Mechanical Drawing 3D Model
MB300S	Through Hole	Single	-55°C to +85°C Baseplate	48	36 – 72	300	100	–	–	Datasheet Mechanical Drawing 3D Model
MB3.3S	Through Hole	Single	-55°C to +85°C Baseplate	48	36 – 72	3.3	50	–	–	Datasheet Mechanical Drawing 3D Model
MB28S	Through Hole	Single	-55°C to +85°C Baseplate	48	36 – 72	28	100	–	–	Datasheet Mechanical Drawing 3D Model
MB28D	Through Hole	Dual	-55°C to +85°C Baseplate	48	36 – 72	–	–	28/28	50/50	Datasheet Mechanical Drawing 3D Model
MB275S	Through Hole	Single	-55°C to +85°C Baseplate	48	36 – 72	275	100	–	–	Datasheet Mechanical Drawing 3D Model
MB250S	Through Hole	Single	-55°C to +85°C Baseplate	48	36 – 72	250	100	–	–	Datasheet Mechanical Drawing 3D Model
MB24S	Through Hole	Single	-55°C to +85°C Baseplate	48	36 – 72	24	100	–	–	Datasheet Mechanical Drawing 3D Model
MB24D	Through Hole	Dual	-55°C to +85°C Baseplate	48	36 – 72	–	–	24/24	50/50	Datasheet Mechanical Drawing 3D Model
MB225S	Through Hole	Single	-55°C to +85°C Baseplate	48	36 – 72	225	100	–	–	Datasheet Mechanical Drawing 3D Model
MB200S	Through Hole	Single	-55°C to +85°C Baseplate	48	36 – 72	200	100	–	–	Datasheet Mechanical Drawing 3D Model
MB175S	Through Hole	Single	-55°C to +85°C Baseplate	48	36 – 72	175	100	–	–	Datasheet Mechanical Drawing 3D Model
MB15S	Through Hole	Single	-55°C to +85°C Baseplate	48	36 – 72	15	100	–	–	Datasheet Mechanical Drawing 3D Model
MB15D	Through Hole	Dual	-55°C to +85°C Baseplate	48	36 – 72	–	–	15/15	50/50	Datasheet Mechanical Drawing 3D Model
MB150S	Through Hole	Single	-55°C to +85°C Baseplate	48	36 – 72	150	100	–	–	Datasheet Mechanical Drawing 3D Model
MB12S	Through Hole	Single	-55°C to +85°C Baseplate	48	36 – 72	12	100	–	–	Datasheet Mechanical Drawing 3D Model
MB12D	Through Hole	Dual	-55°C to +85°C Baseplate	48	36 – 72	–	–	12/12	50/50	Datasheet Mechanical Drawing 3D Model
MB125S	Through Hole	Single	-55°C to +85°C Baseplate	48	36 – 72	125	100	–	–	Datasheet Mechanical Drawing 3D Model
MB100S	Through Hole	Single	-55°C to +85°C Baseplate	48	36 – 72	100	100	–	–	Datasheet Mechanical Drawing 3D Model
MA9S	Through Hole	Single	-55°C to +85°C Baseplate	28	18 – 36	9	100	–	–	Datasheet Mechanical Drawing 3D Model
MA9D	Through Hole	Dual	-55°C to +85°C Baseplate	28	18 – 36	–	–	9/9	50/50	Datasheet Mechanical Drawing 3D Model
MA5S	Through Hole	Single	-55°C to +85°C Baseplate	28	18 – 36	5	75	–	–	Datasheet Mechanical Drawing 3D Model
MA5D	Through Hole	Dual	-55°C to +85°C Baseplate	28	18 – 36	–	–	5/5	37.5/37.5	Datasheet Mechanical Drawing 3D Model
MA5.2S	Through Hole	Single	-55°C to +85°C Baseplate	28	18 – 36	5.2	75	–	–	Datasheet Mechanical Drawing 3D Model
MA48S	Through Hole	Single	-55°C to +85°C Baseplate	28	18 – 36	48	100	–	–	Datasheet Mechanical Drawing 3D Model
MA48D	Through Hole	Dual	-55°C to +85°C Baseplate	28	18 – 36	–	–	48/48	50/50	Datasheet Mechanical Drawing 3D Model
MA3.3S	Through Hole	Single	-55°C to +85°C Baseplate	28	18 – 36	3.3	50	–	–	Datasheet Mechanical Drawing 3D Model
MA28S	Through Hole	Single	-55°C to +85°C Baseplate	28	18 – 36	28	100	–	–	Datasheet Mechanical Drawing 3D Model
MA28D	Through Hole	Dual	-55°C to +85°C Baseplate	28	18 – 36	–	–	28/28	50/50	Datasheet Mechanical Drawing 3D Model
MA250S	Through Hole	Single	-55°C to +85°C Baseplate	28	18 – 36	250	100	–	–	Datasheet Mechanical Drawing 3D Model
MA24S	Through Hole	Single	-55°C to +85°C Baseplate	28	18 – 36	24	100	–	–	Datasheet Mechanical Drawing 3D Model
MA24D	Through Hole	Dual	-55°C to +85°C Baseplate	28	18 – 36	–	–	24/24	50/50	Datasheet Mechanical Drawing 3D Model
MA225S	Through Hole	Single	-55°C to +85°C Baseplate	28	18 – 36	225	100	–	–	Datasheet Mechanical Drawing 3D Model
MA200S	Through Hole	Single	-55°C to +85°C Baseplate	28	18 – 36	200	100	–	–	Datasheet Mechanical Drawing 3D Model
MA175S	Through Hole	Single	-55°C to +85°C Baseplate	28	18 – 36	175	100	–	–	Datasheet Mechanical Drawing 3D Model
MA15S	Through Hole	Single	-55°C to +85°C Baseplate	28	18 – 36	15	100	–	–	Datasheet Mechanical Drawing 3D Model
MA15D	Through Hole	Dual	-55°C to +85°C Baseplate	28	18 – 36	–	–	15/15	50/50	Datasheet Mechanical Drawing 3D Model
MA150S	Through Hole	Single	-55°C to +85°C Baseplate	28	18 – 36	150	100	–	–	Datasheet Mechanical Drawing 3D Model
MA12S	Through Hole	Single	-55°C to +85°C Baseplate	28	18 – 36	12	100	–	–	Datasheet Mechanical Drawing 3D Model
MA12D	Through Hole	Dual	-55°C to +85°C Baseplate	28	18 – 36	–	–	12/12	50/50	Datasheet Mechanical Drawing 3D Model
MA125S	Through Hole	Single	-55°C to +85°C Baseplate	28	18 – 36	125	100	–	–	Datasheet Mechanical Drawing 3D Model
MA100S	Through Hole	Single	-55°C to +85°C Baseplate	28	18 – 36	100	100	–	–	Datasheet Mechanical Drawing 3D Model
FD9S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	9	100	–	–	Datasheet Mechanical Drawing 3D Model
FD9D	Through Hole	Dual	-40°C to +85°C Baseplate	300	200 – 380	–	–	9/9	50/50	Datasheet Mechanical Drawing 3D Model
FD5S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	5	75	–	–	Datasheet Mechanical Drawing 3D Model
FD5D	Through Hole	Dual	-40°C to +85°C Baseplate	300	200 – 380	–	–	5/5	37.5/37.5	Datasheet Mechanical Drawing 3D Model
FD5.2S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	5.2	75	–	–	Datasheet Mechanical Drawing 3D Model
FD48S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	48	100	–	–	Datasheet Mechanical Drawing 3D Model
FD48D	Through Hole	Dual	-40°C to +85°C Baseplate	300	200 – 380	–	–	48/48	50/50	Datasheet Mechanical Drawing 3D Model
FD350S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	350	100	–	–	Datasheet Mechanical Drawing 3D Model
FD325S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	325	100	–	–	Datasheet Mechanical Drawing 3D Model
FD300S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	300	100	–	–	Datasheet Mechanical Drawing 3D Model
FD3.3S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	3.3	50	–	–	Datasheet Mechanical Drawing 3D Model
FD28S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	28	100	–	–	Datasheet Mechanical Drawing 3D Model
FD28D	Through Hole	Dual	-40°C to +85°C Baseplate	300	200 – 380	–	–	28/28	50/50	Datasheet Mechanical Drawing 3D Model
FD275S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	275	100	–	–	Datasheet Mechanical Drawing 3D Model
FD250S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	250	100	–	–	Datasheet Mechanical Drawing 3D Model
FD24S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	24	100	–	–	Datasheet Mechanical Drawing 3D Model
FD24D	Through Hole	Dual	-40°C to +85°C Baseplate	300	200 – 380	–	–	24/24	50/50	Datasheet Mechanical Drawing 3D Model
FD225S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	225	100	–	–	Datasheet Mechanical Drawing 3D Model
FD200S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	200	100	–	–	Datasheet Mechanical Drawing 3D Model
FD175S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	175	100	–	–	Datasheet Mechanical Drawing 3D Model
FD15S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	15	100	–	–	Datasheet Mechanical Drawing 3D Model
FD15D	Through Hole	Dual	-40°C to +85°C Baseplate	300	200 – 380	–	–	15/15	50/50	Datasheet Mechanical Drawing 3D Model
FD150S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	150	100	–	–	Datasheet Mechanical Drawing 3D Model
FD12S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	12	100	–	–	Datasheet Mechanical Drawing 3D Model
FD12D	Through Hole	Dual	-40°C to +85°C Baseplate	300	200 – 380	–	–	12/12	50/50	Datasheet Mechanical Drawing 3D Model
FD125S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	125	100	–	–	Datasheet Mechanical Drawing 3D Model
FD100S	Through Hole	Single	-40°C to +85°C Baseplate	300	200 – 380	100	100	–	–	Datasheet Mechanical Drawing 3D Model
FC9S	Through Hole	Single	-40°C to +85°C Baseplate	150	100 – 180	9	100	–	–	Datasheet Mechanical Drawing 3D Model
FC9D	Through Hole	Dual	-40°C to +85°C Baseplate	150	100 – 180	–	–	9/9	50/50	Datasheet Mechanical Drawing 3D Model
FC5S	Through Hole	Single	-40°C to +85°C Baseplate	150	100 – 180	5	75	–	–	Datasheet Mechanical Drawing 3D Model
FC5D	Through Hole	Dual	-40°C to +85°C Baseplate	150	100 – 180	–	–	5/5	37.5/37.5	Datasheet Mechanical Drawing 3D Model
FC5.2S	Through Hole	Single	-40°C to +85°C Baseplate	150	100 – 180	5.2	75	–	–	Datasheet Mechanical Drawing 3D Model
FC48S	Through Hole	Single	-40°C to +85°C Baseplate	150	100 – 180	48	100	–	–	Datasheet Mechanical Drawing 3D Model
FC48D	Through Hole	Dual	-40°C to +85°C Baseplate	150	100 – 180	–	–	48/48	50/50	Datasheet Mechanical Drawing 3D Model
FC300S	Through Hole	Single	-40°C to +85°C Baseplate	150	100 – 180	300	100	–	–	Datasheet Mechanical Drawing 3D Model
FC3.3S	Through Hole	Single	-40°C to +85°C Baseplate	150	100 – 180	3.3	50	–	–	Datasheet Mechanical Drawing 3D Model
FC28S	Through Hole	Single	-40°C to +85°C Baseplate	150	100 – 180	28	100	–	–	Datasheet Mechanical Drawing 3D Model
FC28D	Through Hole	Dual	-40°C to +85°C Baseplate	150	100 – 180	–	–	28/28	50/50	Datasheet Mechanical Drawing 3D Model
FC275S	Through Hole	Single	-40°C to +85°C Baseplate	150	100 – 180	275	100	–	–	Datasheet Mechanical Drawing 3D Model
FC250S	Through Hole	Single	-40°C to +85°C Baseplate	150	100 – 180	250	100	–	–	Datasheet Mechanical Drawing 3D Model
FC24S	Through Hole	Single	-40°C to +85°C Baseplate	150	100 – 180	24	100	–	–	Datasheet Mechanical Drawing 3D Model
FC24D	Through Hole	Dual	-40°C to +85°C Baseplate	150	100 – 180	–	–	24/24	50/50	Datasheet Mechanical Drawing 3D Model
FC225S	Through Hole	Single	-40°C to +85°C Baseplate	150	100 – 180	225	100	–	–	Datasheet Mechanical Drawing 3D Model
FC200S	Through Hole	Single	-40°C to +85°C Baseplate	150	100 – 180	200	100	–	–	Datasheet Mechanical Drawing 3D Model
FC175S	Through Hole	Single	-40°C to +85°C Baseplate	150	100 – 180	175	100	–	–	Datasheet Mechanical Drawing 3D Model
FC15S	Through Hole	Single	-40°C to +85°C Baseplate	150	100 – 180	15	100	–	–	Datasheet Mechanical Drawing 3D Model
FC15D	Through Hole	Dual	-40°C to +85°C Baseplate	150	100 – 180	–	–	15/15	50/50	Datasheet Mechanical Drawing 3D Model
FC150S	Through Hole	Single	-40°C to +85°C Baseplate	150	100 – 180	150	100	–	–	Datasheet Mechanical Drawing 3D Model
FC12S	Through Hole	Single	-40°C to +85°C Baseplate	150	100 – 180	12	100	–	–	Datasheet Mechanical Drawing 3D Model
FC12D	Through Hole	Dual	-40°C to +85°C Baseplate	150	100 – 180	–	–	12/12	50/50	Datasheet Mechanical Drawing 3D Model
FC125S	Through Hole	Single	-40°C to +85°C Baseplate	150	100 – 180	125	100	–	–	Datasheet Mechanical Drawing 3D Model
FC100S	Through Hole	Single	-40°C to +85°C Baseplate	150	100 – 180	100	100	–	–	Datasheet Mechanical Drawing 3D Model
FB9S	Through Hole	Single	-40°C to +85°C Baseplate	48	36 – 72	9	100	–	–	Datasheet Mechanical Drawing 3D Model
FB9D	Through Hole	Dual	-40°C to +85°C Baseplate	48	36 – 72	–	–	9/9	50/50	Datasheet Mechanical Drawing 3D Model
FB5S	Through Hole	Single	-40°C to +85°C Baseplate	48	36 – 72	5	75	–	–	Datasheet Mechanical Drawing 3D Model
FB5D	Through Hole	Dual	-40°C to +85°C Baseplate	48	36 – 72	–	–	5/5	37.5/37.5	Datasheet Mechanical Drawing 3D Model
FB5.2S	Through Hole	Single	-40°C to +85°C Baseplate	48	36 – 72	5.2	75	–	–	Datasheet Mechanical Drawing 3D Model
FB48S	Through Hole	Single	-40°C to +85°C Baseplate	48	36 – 72	48	100	–	–	Datasheet Mechanical Drawing 3D Model
FB48D	Through Hole	Dual	-40°C to +85°C Baseplate	48	36 – 72	–	–	48/48	50/50	Datasheet Mechanical Drawing 3D Model
FB300S	Through Hole	Single	-40°C to +85°C Baseplate	48	36 – 72	300	100	–	–	Datasheet Mechanical Drawing 3D Model
FB3.3S	Through Hole	Single	-40°C to +85°C Baseplate	48	36 – 72	3.3	50	–	–	Datasheet Mechanical Drawing 3D Model
FB28S	Through Hole	Single	-40°C to +85°C Baseplate	48	36 – 72	28	100	–	–	Datasheet Mechanical Drawing 3D Model
FB28D	Through Hole	Dual	-40°C to +85°C Baseplate	48	36 – 72	–	–	28/28	50/50	Datasheet Mechanical Drawing 3D Model
FB275S	Through Hole	Single	-40°C to +85°C Baseplate	48	36 – 72	275	100	–	–	Datasheet Mechanical Drawing 3D Model
FB250S	Through Hole	Single	-40°C to +85°C Baseplate	48	36 – 72	250	100	–	–	Datasheet Mechanical Drawing 3D Model
FB24S	Through Hole	Single	-40°C to +85°C Baseplate	48	36 – 72	24	100	–	–	Datasheet Mechanical Drawing 3D Model
FB24D	Through Hole	Dual	-40°C to +85°C Baseplate	48	36 – 72	–	–	24/24	50/50	Datasheet Mechanical Drawing 3D Model
FB225S	Through Hole	Single	-40°C to +85°C Baseplate	48	36 – 72	225	100	–	–	Datasheet Mechanical Drawing 3D Model
FB200S	Through Hole	Single	-40°C to +85°C Baseplate	48	36 – 72	200	100	–	–	Datasheet Mechanical Drawing 3D Model
FB175S	Through Hole	Single	-40°C to +85°C Baseplate	48	36 – 72	175	100	–	–	Datasheet Mechanical Drawing 3D Model
FB15S	Through Hole	Single	-40°C to +85°C Baseplate	48	36 – 72	15	100	–	–	Datasheet Mechanical Drawing 3D Model
FB15D	Through Hole	Dual	-40°C to +85°C Baseplate	48	36 – 72	–	–	15/15	50/50	Datasheet Mechanical Drawing 3D Model
FB150S	Through Hole	Single	-40°C to +85°C Baseplate	48	36 – 72	150	100	–	–	Datasheet Mechanical Drawing 3D Model
FB12S	Through Hole	Single	-40°C to +85°C Baseplate	48	36 – 72	12	100	–	–	Datasheet Mechanical Drawing 3D Model
FB12D	Through Hole	Dual	-40°C to +85°C Baseplate	48	36 – 72	–	–	12/12	50/50	Datasheet Mechanical Drawing 3D Model
FB125S	Through Hole	Single	-40°C to +85°C Baseplate	48	36 – 72	125	100	–	–	Datasheet Mechanical Drawing 3D Model
FB100S	Through Hole	Single	-40°C to +85°C Baseplate	48	36 – 72	100	100	–	–	Datasheet Mechanical Drawing 3D Model
FA9S	Through Hole	Single	-40°C to +85°C Baseplate	28	18 – 36	9	100	–	–	Datasheet Mechanical Drawing 3D Model
FA9D	Through Hole	Dual	-40°C to +85°C Baseplate	28	18 – 36	–	–	9/9	50/50	Datasheet Mechanical Drawing 3D Model
FA5S	Through Hole	Single	-40°C to +85°C Baseplate	28	18 – 36	5	75	–	–	Datasheet Mechanical Drawing 3D Model
FA5D	Through Hole	Dual	-40°C to +85°C Baseplate	28	18 – 36	–	–	5/5	37.5/37.5	Datasheet Mechanical Drawing 3D Model
FA5.2S	Through Hole	Single	-40°C to +85°C Baseplate	28	18 – 36	5.2	75	–	–	Datasheet Mechanical Drawing 3D Model
FA48S	Through Hole	Single	-40°C to +85°C Baseplate	28	18 – 36	48	100	–	–	Datasheet Mechanical Drawing 3D Model
FA48D	Through Hole	Dual	-40°C to +85°C Baseplate	28	18 – 36	–	–	48/48	50/50	Datasheet Mechanical Drawing 3D Model
FA3.3S	Through Hole	Single	-40°C to +85°C Baseplate	28	18 – 36	3.3	50	–	–	Datasheet Mechanical Drawing 3D Model
FA28S	Through Hole	Single	-40°C to +85°C Baseplate	28	18 – 36	28	100	–	–	Datasheet Mechanical Drawing 3D Model
FA28D	Through Hole	Dual	-40°C to +85°C Baseplate	28	18 – 36	–	–	28/28	50/50	Datasheet Mechanical Drawing 3D Model
FA250S	Through Hole	Single	-40°C to +85°C Baseplate	28	18 – 36	250	100	–	–	Datasheet Mechanical Drawing 3D Model
FA24S	Through Hole	Single	-40°C to +85°C Baseplate	28	18 – 36	24	100	–	–	Datasheet Mechanical Drawing 3D Model
FA24D	Through Hole	Dual	-40°C to +85°C Baseplate	28	18 – 36	–	–	24/24	50/50	Datasheet Mechanical Drawing 3D Model
FA225S	Through Hole	Single	-40°C to +85°C Baseplate	28	18 – 36	225	100	–	–	Datasheet Mechanical Drawing 3D Model
FA200S	Through Hole	Single	-40°C to +85°C Baseplate	28	18 – 36	200	100	–	–	Datasheet Mechanical Drawing 3D Model
FA175S	Through Hole	Single	-40°C to +85°C Baseplate	28	18 – 36	175	100	–	–	Datasheet Mechanical Drawing 3D Model
FA15S	Through Hole	Single	-40°C to +85°C Baseplate	28	18 – 36	15	100	–	–	Datasheet Mechanical Drawing 3D Model
FA15D	Through Hole	Dual	-40°C to +85°C Baseplate	28	18 – 36	–	–	15/15	50/50	Datasheet Mechanical Drawing 3D Model
FA150S	Through Hole	Single	-40°C to +85°C Baseplate	28	18 – 36	150	100	–	–	Datasheet Mechanical Drawing 3D Model
FA12S	Through Hole	Single	-40°C to +85°C Baseplate	28	18 – 36	12	100	–	–	Datasheet Mechanical Drawing 3D Model
FA12D	Through Hole	Dual	-40°C to +85°C Baseplate	28	18 – 36	–	–	12/12	50/50	Datasheet Mechanical Drawing 3D Model
FA125S	Through Hole	Single	-40°C to +85°C Baseplate	28	18 – 36	125	100	–	–	Datasheet Mechanical Drawing 3D Model
FA100S	Through Hole	Single	-40°C to +85°C Baseplate	28	18 – 36	100	100	–	–	Datasheet Mechanical Drawing 3D Model

Series F/M

100W Isolated Regulated High Power DC-DC Converter

Custom Solutions

Features

Options
