Series A & SM

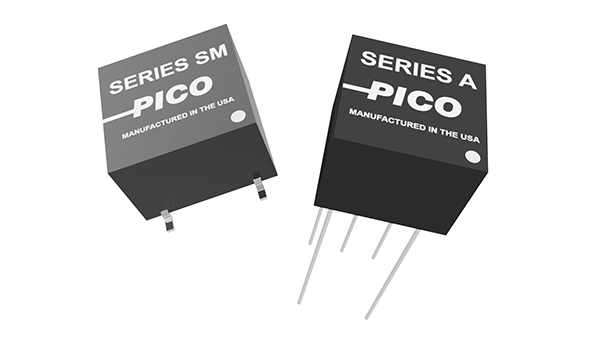

1.25W Isolated Proportional Low Profile DC-DC Converter

The A & SM series are unregulated DC-DC converters in an ultra-miniature encapsulated package – 0.500″ x 0.500″ footprint. Over 200 models are available in both single and dual outputs. They can operate over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.

Download Datasheet

Features

Up to 1.25W output at +70°C ambient
Encapsulated semiconductors, conservatively rated for maximum reliability
Ultra-miniature size – down to 0.300” height
5 to 48V input models
Up to 250V output models
Up to 1000VDC isolation at 100MΩ
Input/output isolation
Single and dual output
Output voltage is directly proportional to input voltage
No heat sink or derating required

Options

Expanded operating temp: -55°C to +85°C
Select screening per MIL-STD-883:
- Stabilization Bake: Ref. Method 1008
- Temperature Cycle: Ref. Method 1010
- Burn-In: Ref. Method 1015
Available RoHS Compliant module
Special Input Voltage, Output Voltage, Isolation Voltage or Output Power

Part Number	Series	Mounting	# of Outputs	Output Type	Nominal Input Voltage (VDC)	Single Output Voltage (VDC)	Single Max Output Power (W)	Dual Output Voltage (VDC)	Dual Max Output Power (W)	Downloads
5SM9S	SM	Surface Mount	Single	Proportional	5	9	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM9D	SM	Surface Mount	Dual	Proportional	5	–	–	±9	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM5S	SM	Surface Mount	Single	Proportional	5	5	1	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM5D	SM	Surface Mount	Dual	Proportional	5	–	–	±5	±0.5	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM5.2S	SM	Surface Mount	Single	Proportional	5	5.2	1	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM48S	SM	Surface Mount	Single	Proportional	5	48	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM48D	SM	Surface Mount	Dual	Proportional	5	–	–	±48	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM3.3S	SM	Surface Mount	Single	Proportional	5	3.3	1	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM28S	SM	Surface Mount	Single	Proportional	5	28	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM28D	SM	Surface Mount	Dual	Proportional	5	–	–	±28	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM250S	SM	Surface Mount	Single	Proportional	5	250	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM24S	SM	Surface Mount	Single	Proportional	5	24	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM24D	SM	Surface Mount	Dual	Proportional	5	–	–	±24	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM200S	SM	Surface Mount	Single	Proportional	5	200	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM15S	SM	Surface Mount	Single	Proportional	5	15	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM15D	SM	Surface Mount	Dual	Proportional	5	–	–	±15	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM150S	SM	Surface Mount	Single	Proportional	5	150	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM12S	SM	Surface Mount	Single	Proportional	5	12	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM12D	SM	Surface Mount	Dual	Proportional	5	–	–	±12	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
5SM100S	SM	Surface Mount	Single	Proportional	5	100	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
5A9S	A	Through Hole	Single	Proportional	5	9	1.25	–	–	Datasheet Mechanical Drawing 3D Model
5A9D	A	Through Hole	Dual	Proportional	5	–	–	±9	±0.625	Datasheet Mechanical Drawing 3D Model
5A5S	A	Through Hole	Single	Proportional	5	5	1	–	–	Datasheet Mechanical Drawing 3D Model
5A5D	A	Through Hole	Dual	Proportional	5	–	–	±5	±0.5	Datasheet Mechanical Drawing 3D Model
5A5.2S	A	Through Hole	Single	Proportional	5	5.2	1	–	–	Datasheet Mechanical Drawing 3D Model
5A48S	A	Through Hole	Single	Proportional	5	48	1.25	–	–	Datasheet Mechanical Drawing 3D Model
5A48D	A	Through Hole	Dual	Proportional	5	–	–	±48	±0.625	Datasheet Mechanical Drawing 3D Model
5A3.3S	A	Through Hole	Single	Proportional	5	3.3	1	–	–	Datasheet Mechanical Drawing 3D Model
5A28S	A	Through Hole	Single	Proportional	5	28	1.25	–	–	Datasheet Mechanical Drawing 3D Model
5A28D	A	Through Hole	Dual	Proportional	5	–	–	±28	±0.625	Datasheet Mechanical Drawing 3D Model
5A250S	A	Through Hole	Single	Proportional	5	250	1.25	–	–	Datasheet Mechanical Drawing 3D Model
5A24S	A	Through Hole	Single	Proportional	5	24	1.25	–	–	Datasheet Mechanical Drawing 3D Model
5A24D	A	Through Hole	Dual	Proportional	5	–	–	±24	±0.625	Datasheet Mechanical Drawing 3D Model
5A200S	A	Through Hole	Single	Proportional	5	200	1.25	–	–	Datasheet Mechanical Drawing 3D Model
5A15S	A	Through Hole	Single	Proportional	5	15	1.25	–	–	Datasheet Mechanical Drawing 3D Model
5A15D	A	Through Hole	Dual	Proportional	5	–	–	±15	±0.625	Datasheet Mechanical Drawing 3D Model
5A150S	A	Through Hole	Single	Proportional	5	150	1.25	–	–	Datasheet Mechanical Drawing 3D Model
5A12S	A	Through Hole	Single	Proportional	5	12	1.25	–	–	Datasheet Mechanical Drawing 3D Model
5A12D	A	Through Hole	Dual	Proportional	5	–	–	±12	±0.625	Datasheet Mechanical Drawing 3D Model
5A100S	A	Through Hole	Single	Proportional	5	100	1.25	–	–	Datasheet Mechanical Drawing 3D Model
48SM9S	SM	Surface Mount	Single	Proportional	48	9	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
48SM9D	SM	Surface Mount	Dual	Proportional	48	–	–	±9	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
48SM5S	SM	Surface Mount	Single	Proportional	48	5	1	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
48SM5D	SM	Surface Mount	Dual	Proportional	48	–	–	±5	±0.5	Datasheet Mechanical Drawing Land Pattern 3D Model
48SM5.2S	SM	Surface Mount	Single	Proportional	48	5.2	1	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
48SM3.3S	SM	Surface Mount	Single	Proportional	48	3.3	1	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
48SM28S	SM	Surface Mount	Single	Proportional	48	28	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
48SM28D	SM	Surface Mount	Dual	Proportional	48	–	–	±28	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
48SM24S	SM	Surface Mount	Single	Proportional	48	24	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
48SM24D	SM	Surface Mount	Dual	Proportional	48	–	–	±24	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
48SM15S	SM	Surface Mount	Single	Proportional	48	15	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
48SM15D	SM	Surface Mount	Dual	Proportional	48	–	–	±15	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
48SM12S	SM	Surface Mount	Single	Proportional	48	12	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
48SM12D	SM	Surface Mount	Dual	Proportional	48	–	–	±12	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
48A9S	A	Through Hole	Single	Proportional	48	9	1.25	–	–	Datasheet Mechanical Drawing 3D Model
48A9D	A	Through Hole	Dual	Proportional	48	–	–	±9	±0.625	Datasheet Mechanical Drawing 3D Model
48A5S	A	Through Hole	Single	Proportional	48	5	1	–	–	Datasheet Mechanical Drawing 3D Model
48A5D	A	Through Hole	Dual	Proportional	48	–	–	±5	±0.5	Datasheet Mechanical Drawing 3D Model
48A5.2S	A	Through Hole	Single	Proportional	48	5.2	1	–	–	Datasheet Mechanical Drawing 3D Model
48A3.3S	A	Through Hole	Single	Proportional	48	3.3	1	–	–	Datasheet Mechanical Drawing 3D Model
48A28S	A	Through Hole	Single	Proportional	48	28	1.25	–	–	Datasheet Mechanical Drawing 3D Model
48A28D	A	Through Hole	Dual	Proportional	48	–	–	±28	±0.625	Datasheet Mechanical Drawing 3D Model
48A24S	A	Through Hole	Single	Proportional	48	24	1.25	–	–	Datasheet Mechanical Drawing 3D Model
48A24D	A	Through Hole	Dual	Proportional	48	–	–	±24	±0.625	Datasheet Mechanical Drawing 3D Model
48A15S	A	Through Hole	Single	Proportional	48	15	1.25	–	–	Datasheet Mechanical Drawing 3D Model
48A15D	A	Through Hole	Dual	Proportional	48	–	–	±15	±0.625	Datasheet Mechanical Drawing 3D Model
48A12S	A	Through Hole	Single	Proportional	48	12	1.25	–	–	Datasheet Mechanical Drawing 3D Model
48A12D	A	Through Hole	Dual	Proportional	48	–	–	±12	±0.625	Datasheet Mechanical Drawing 3D Model
28SM9S	SM	Surface Mount	Single	Proportional	28	9	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM9D	SM	Surface Mount	Dual	Proportional	28	–	–	±9	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM5S	SM	Surface Mount	Single	Proportional	28	5	1	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM5D	SM	Surface Mount	Dual	Proportional	28	–	–	±5	±0.5	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM5.2S	SM	Surface Mount	Single	Proportional	28	5.2	1	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM48S	SM	Surface Mount	Single	Proportional	28	48	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM48D	SM	Surface Mount	Dual	Proportional	28	–	–	±48	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM3.3S	SM	Surface Mount	Single	Proportional	28	3.3	1	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM28S	SM	Surface Mount	Single	Proportional	28	28	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM28D	SM	Surface Mount	Dual	Proportional	28	–	–	±28	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM250S	SM	Surface Mount	Single	Proportional	28	250	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM24S	SM	Surface Mount	Single	Proportional	28	24	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM24D	SM	Surface Mount	Dual	Proportional	28	–	–	±24	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM200S	SM	Surface Mount	Single	Proportional	28	200	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM15S	SM	Surface Mount	Single	Proportional	28	15	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM15D	SM	Surface Mount	Dual	Proportional	28	–	–	±15	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM150S	SM	Surface Mount	Single	Proportional	28	150	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM12S	SM	Surface Mount	Single	Proportional	28	12	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM12D	SM	Surface Mount	Dual	Proportional	28	–	–	±12	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
28SM100S	SM	Surface Mount	Single	Proportional	28	100	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
28A9S	A	Through Hole	Single	Proportional	28	9	1.25	–	–	Datasheet Mechanical Drawing 3D Model
28A9D	A	Through Hole	Dual	Proportional	28	–	–	±9	±0.625	Datasheet Mechanical Drawing 3D Model
28A5S	A	Through Hole	Single	Proportional	28	5	1	–	–	Datasheet Mechanical Drawing 3D Model
28A5D	A	Through Hole	Dual	Proportional	28	–	–	±5	±0.5	Datasheet Mechanical Drawing 3D Model
28A5.2S	A	Through Hole	Single	Proportional	28	5.2	1	–	–	Datasheet Mechanical Drawing 3D Model
28A48S	A	Through Hole	Single	Proportional	28	48	1.25	–	–	Datasheet Mechanical Drawing 3D Model
28A48D	A	Through Hole	Dual	Proportional	28	–	–	±48	±0.625	Datasheet Mechanical Drawing 3D Model
28A3.3S	A	Through Hole	Single	Proportional	28	3.3	1	–	–	Datasheet Mechanical Drawing 3D Model
28A28S	A	Through Hole	Single	Proportional	28	28	1.25	–	–	Datasheet Mechanical Drawing 3D Model
28A28D	A	Through Hole	Dual	Proportional	28	–	–	±28	±0.625	Datasheet Mechanical Drawing 3D Model
28A250S	A	Through Hole	Single	Proportional	28	250	1.25	–	–	Datasheet Mechanical Drawing 3D Model
28A24S	A	Through Hole	Single	Proportional	28	24	1.25	–	–	Datasheet Mechanical Drawing 3D Model
28A24D	A	Through Hole	Dual	Proportional	28	–	–	±24	±0.625	Datasheet Mechanical Drawing 3D Model
28A200S	A	Through Hole	Single	Proportional	28	200	1.25	–	–	Datasheet Mechanical Drawing 3D Model
28A15S	A	Through Hole	Single	Proportional	28	15	1.25	–	–	Datasheet Mechanical Drawing 3D Model
28A15D	A	Through Hole	Dual	Proportional	28	–	–	±15	±0.625	Datasheet Mechanical Drawing 3D Model
28A150S	A	Through Hole	Single	Proportional	28	150	1.25	–	–	Datasheet Mechanical Drawing 3D Model
28A12S	A	Through Hole	Single	Proportional	28	12	1.25	–	–	Datasheet Mechanical Drawing 3D Model
28A12D	A	Through Hole	Dual	Proportional	28	–	–	±12	±0.625	Datasheet Mechanical Drawing 3D Model
28A100S	A	Through Hole	Single	Proportional	28	100	1.25	–	–	Datasheet Mechanical Drawing 3D Model
24SM9S	SM	Surface Mount	Single	Proportional	24	9	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM9D	SM	Surface Mount	Dual	Proportional	24	–	–	±9	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM5S	SM	Surface Mount	Single	Proportional	24	5	1	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM5D	SM	Surface Mount	Dual	Proportional	24	–	–	±5	±0.5	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM5.2S	SM	Surface Mount	Single	Proportional	24	5.2	1	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM48S	SM	Surface Mount	Single	Proportional	24	48	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM48D	SM	Surface Mount	Dual	Proportional	24	–	–	±48	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM3.3S	SM	Surface Mount	Single	Proportional	24	3.3	1	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM28S	SM	Surface Mount	Single	Proportional	24	28	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM28D	SM	Surface Mount	Dual	Proportional	24	–	–	±28	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM250S	SM	Surface Mount	Single	Proportional	24	250	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM24S	SM	Surface Mount	Single	Proportional	24	24	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM24D	SM	Surface Mount	Dual	Proportional	24	–	–	±24	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM200S	SM	Surface Mount	Single	Proportional	24	200	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM15S	SM	Surface Mount	Single	Proportional	24	15	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM15D	SM	Surface Mount	Dual	Proportional	24	–	–	±15	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM150S	SM	Surface Mount	Single	Proportional	24	150	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM12S	SM	Surface Mount	Single	Proportional	24	12	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM12D	SM	Surface Mount	Dual	Proportional	24	–	–	±12	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
24SM100S	SM	Surface Mount	Single	Proportional	24	100	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
24A9S	A	Through Hole	Single	Proportional	24	9	1.25	–	–	Datasheet Mechanical Drawing 3D Model
24A9D	A	Through Hole	Dual	Proportional	24	–	–	±9	±0.625	Datasheet Mechanical Drawing 3D Model
24A5S	A	Through Hole	Single	Proportional	24	5	1	–	–	Datasheet Mechanical Drawing 3D Model
24A5D	A	Through Hole	Dual	Proportional	24	–	–	±5	±0.5	Datasheet Mechanical Drawing 3D Model
24A5.2S	A	Through Hole	Single	Proportional	24	5.2	1	–	–	Datasheet Mechanical Drawing 3D Model
24A48S	A	Through Hole	Single	Proportional	24	48	1.25	–	–	Datasheet Mechanical Drawing 3D Model
24A48D	A	Through Hole	Dual	Proportional	24	–	–	±48	±0.625	Datasheet Mechanical Drawing 3D Model
24A3.3S	A	Through Hole	Single	Proportional	24	3.3	1	–	–	Datasheet Mechanical Drawing 3D Model
24A28S	A	Through Hole	Single	Proportional	24	28	1.25	–	–	Datasheet Mechanical Drawing 3D Model
24A28D	A	Through Hole	Dual	Proportional	24	–	–	±28	±0.625	Datasheet Mechanical Drawing 3D Model
24A250S	A	Through Hole	Single	Proportional	24	250	1.25	–	–	Datasheet Mechanical Drawing 3D Model
24A24S	A	Through Hole	Single	Proportional	24	24	1.25	–	–	Datasheet Mechanical Drawing 3D Model
24A24D	A	Through Hole	Dual	Proportional	24	–	–	±24	±0.625	Datasheet Mechanical Drawing 3D Model
24A200S	A	Through Hole	Single	Proportional	24	200	1.25	–	–	Datasheet Mechanical Drawing 3D Model
24A15S	A	Through Hole	Single	Proportional	24	15	1.25	–	–	Datasheet Mechanical Drawing 3D Model
24A15D	A	Through Hole	Dual	Proportional	24	–	–	±15	±0.625	Datasheet Mechanical Drawing 3D Model
24A150S	A	Through Hole	Single	Proportional	24	150	1.25	–	–	Datasheet Mechanical Drawing 3D Model
24A12S	A	Through Hole	Single	Proportional	24	12	1.25	–	–	Datasheet Mechanical Drawing 3D Model
24A12D	A	Through Hole	Dual	Proportional	24	–	–	±12	±0.625	Datasheet Mechanical Drawing 3D Model
24A100S	A	Through Hole	Single	Proportional	24	100	1.25	–	–	Datasheet Mechanical Drawing 3D Model
15SM9S	SM	Surface Mount	Single	Proportional	15	9	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
15SM9D	SM	Surface Mount	Dual	Proportional	15	–	–	±9	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
15SM5S	SM	Surface Mount	Single	Proportional	15	5	1	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
15SM5D	SM	Surface Mount	Dual	Proportional	15	–	–	±5	±0.5	Datasheet Mechanical Drawing Land Pattern 3D Model
15SM5.2S	SM	Surface Mount	Single	Proportional	15	5.2	1	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
15SM48S	SM	Surface Mount	Single	Proportional	15	48	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
15SM48D	SM	Surface Mount	Dual	Proportional	15	–	–	±48	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
15SM3.3S	SM	Surface Mount	Single	Proportional	15	3.3	1	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
15SM28S	SM	Surface Mount	Single	Proportional	15	28	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
15SM28D	SM	Surface Mount	Dual	Proportional	15	–	–	±28	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
15SM250S	SM	Through Hole	Single	Proportional	15	250	1.25	–	–	Datasheet Mechanical Drawing 3D Model
15SM24S	SM	Surface Mount	Single	Proportional	15	24	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
15SM24D	SM	Surface Mount	Dual	Proportional	15	–	–	±24	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
15SM200S	SM	Through Hole	Single	Proportional	15	200	1.25	–	–	Datasheet Mechanical Drawing 3D Model
15SM15S	SM	Surface Mount	Single	Proportional	15	15	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
15SM15D	SM	Surface Mount	Dual	Proportional	15	–	–	±15	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
15SM150S	SM	Through Hole	Single	Proportional	15	150	1.25	–	–	Datasheet Mechanical Drawing 3D Model
15SM12S	SM	Surface Mount	Single	Proportional	15	12	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
15SM12D	SM	Surface Mount	Dual	Proportional	15	–	–	±12	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
15SM100S	SM	Through Hole	Single	Proportional	15	100	1.25	–	–	Datasheet Mechanical Drawing 3D Model
15A9S	A	Through Hole	Single	Proportional	15	9	1.25	–	–	Datasheet Mechanical Drawing 3D Model
15A9D	A	Through Hole	Dual	Proportional	15	–	–	±9	±0.625	Datasheet Mechanical Drawing 3D Model
15A5S	A	Through Hole	Single	Proportional	15	5	1	–	–	Datasheet Mechanical Drawing 3D Model
15A5D	A	Through Hole	Dual	Proportional	15	–	–	±5	±0.5	Datasheet Mechanical Drawing 3D Model
15A5.2S	A	Through Hole	Single	Proportional	15	5.2	1	–	–	Datasheet Mechanical Drawing 3D Model
15A48S	A	Through Hole	Single	Proportional	15	48	1.25	–	–	Datasheet Mechanical Drawing 3D Model
15A48D	A	Through Hole	Dual	Proportional	15	–	–	±48	±0.625	Datasheet Mechanical Drawing 3D Model
15A3.3S	A	Through Hole	Single	Proportional	15	3.3	1	–	–	Datasheet Mechanical Drawing 3D Model
15A28S	A	Through Hole	Single	Proportional	15	28	1.25	–	–	Datasheet Mechanical Drawing 3D Model
15A28D	A	Through Hole	Dual	Proportional	15	–	–	±28	±0.625	Datasheet Mechanical Drawing 3D Model
15A250S	A	Through Hole	Single	Proportional	15	250	1.25	–	–	Datasheet Mechanical Drawing 3D Model
15A24S	A	Through Hole	Single	Proportional	15	24	1.25	–	–	Datasheet Mechanical Drawing 3D Model
15A24D	A	Through Hole	Dual	Proportional	15	–	–	±24	±0.625	Datasheet Mechanical Drawing 3D Model
15A200S	A	Through Hole	Single	Proportional	15	200	1.25	–	–	Datasheet Mechanical Drawing 3D Model
15A15S	A	Through Hole	Single	Proportional	15	15	1.25	–	–	Datasheet Mechanical Drawing 3D Model
15A15D	A	Through Hole	Dual	Proportional	15	–	–	±15	±0.625	Datasheet Mechanical Drawing 3D Model
15A150S	A	Through Hole	Single	Proportional	15	150	1.25	–	–	Datasheet Mechanical Drawing 3D Model
15A12S	A	Through Hole	Single	Proportional	15	12	1.25	–	–	Datasheet Mechanical Drawing 3D Model
15A12D	A	Through Hole	Dual	Proportional	15	–	–	±12	±0.625	Datasheet Mechanical Drawing 3D Model
15A100S	A	Through Hole	Single	Proportional	15	100	1.25	–	–	Datasheet Mechanical Drawing 3D Model
12SM9S	SM	Surface Mount	Single	Proportional	12	9	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM9D	SM	Surface Mount	Dual	Proportional	12	–	–	±9	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM5S	SM	Surface Mount	Single	Proportional	12	5	1	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM5D	SM	Surface Mount	Dual	Proportional	12	–	–	±5	±0.5	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM5.2S	SM	Surface Mount	Single	Proportional	12	5.2	1	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM48S	SM	Surface Mount	Single	Proportional	12	48	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM48D	SM	Surface Mount	Dual	Proportional	12	–	–	±48	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM3.3S	SM	Surface Mount	Single	Proportional	12	3.3	1	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM28S	SM	Surface Mount	Single	Proportional	12	28	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM28D	SM	Surface Mount	Dual	Proportional	12	–	–	±28	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM250S	SM	Surface Mount	Single	Proportional	12	250	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM24S	SM	Surface Mount	Single	Proportional	12	24	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM24D	SM	Surface Mount	Dual	Proportional	12	–	–	±24	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM200S	SM	Surface Mount	Single	Proportional	12	200	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM15S	SM	Surface Mount	Single	Proportional	12	15	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM15D	SM	Surface Mount	Dual	Proportional	12	–	–	±15	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM150S	SM	Surface Mount	Single	Proportional	12	150	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM12S	SM	Surface Mount	Single	Proportional	12	12	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM12D	SM	Surface Mount	Dual	Proportional	12	–	–	±12	±0.625	Datasheet Mechanical Drawing Land Pattern 3D Model
12SM100S	SM	Surface Mount	Single	Proportional	12	100	1.25	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
12A9S	A	Through Hole	Single	Proportional	12	9	1.25	–	–	Datasheet Mechanical Drawing 3D Model
12A9D	A	Through Hole	Dual	Proportional	12	–	–	±9	±0.625	Datasheet Mechanical Drawing 3D Model
12A5S	A	Through Hole	Single	Proportional	12	5	1	–	–	Datasheet Mechanical Drawing 3D Model
12A5D	A	Through Hole	Dual	Proportional	12	–	–	±5	±0.5	Datasheet Mechanical Drawing 3D Model
12A5.2S	A	Through Hole	Single	Proportional	12	5.2	1	–	–	Datasheet Mechanical Drawing 3D Model
12A48S	A	Through Hole	Single	Proportional	12	48	1.25	–	–	Datasheet Mechanical Drawing 3D Model
12A48D	A	Through Hole	Dual	Proportional	12	–	–	±48	±0.625	Datasheet Mechanical Drawing 3D Model
12A3.3S	A	Through Hole	Single	Proportional	12	3.3	1	–	–	Datasheet Mechanical Drawing 3D Model
12A28S	A	Through Hole	Single	Proportional	12	28	1.25	–	–	Datasheet Mechanical Drawing 3D Model
12A28D	A	Through Hole	Dual	Proportional	12	–	–	±28	±0.625	Datasheet Mechanical Drawing 3D Model
12A250S	A	Through Hole	Single	Proportional	12	250	1.25	–	–	Datasheet Mechanical Drawing 3D Model
12A24S	A	Through Hole	Single	Proportional	12	24	1.25	–	–	Datasheet Mechanical Drawing 3D Model
12A24D	A	Through Hole	Dual	Proportional	12	–	–	±24	±0.625	Datasheet Mechanical Drawing 3D Model
12A200S	A	Through Hole	Single	Proportional	12	200	1.25	–	–	Datasheet Mechanical Drawing 3D Model
12A15S	A	Through Hole	Single	Proportional	12	15	1.25	–	–	Datasheet Mechanical Drawing 3D Model
12A15D	A	Through Hole	Dual	Proportional	12	–	–	±15	±0.625	Datasheet Mechanical Drawing 3D Model
12A150S	A	Through Hole	Single	Proportional	12	150	1.25	–	–	Datasheet Mechanical Drawing 3D Model
12A12S	A	Through Hole	Single	Proportional	12	12	1.25	–	–	Datasheet Mechanical Drawing 3D Model
12A12D	A	Through Hole	Dual	Proportional	12	–	–	±12	±0.625	Datasheet Mechanical Drawing 3D Model
12A100S	A	Through Hole	Single	Proportional	12	100	1.25	–	–	Datasheet Mechanical Drawing 3D Model

Series A & SM

1.25W Isolated Proportional Low Profile DC-DC Converter

Custom Solutions

Features

Options
