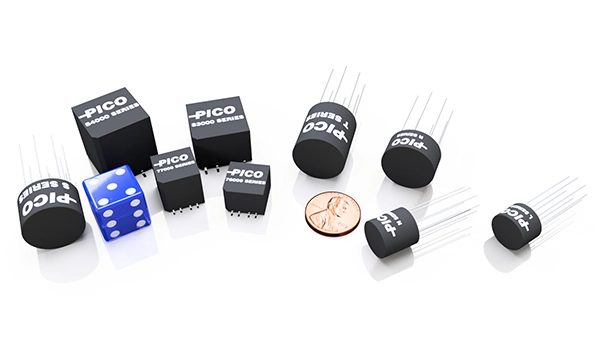

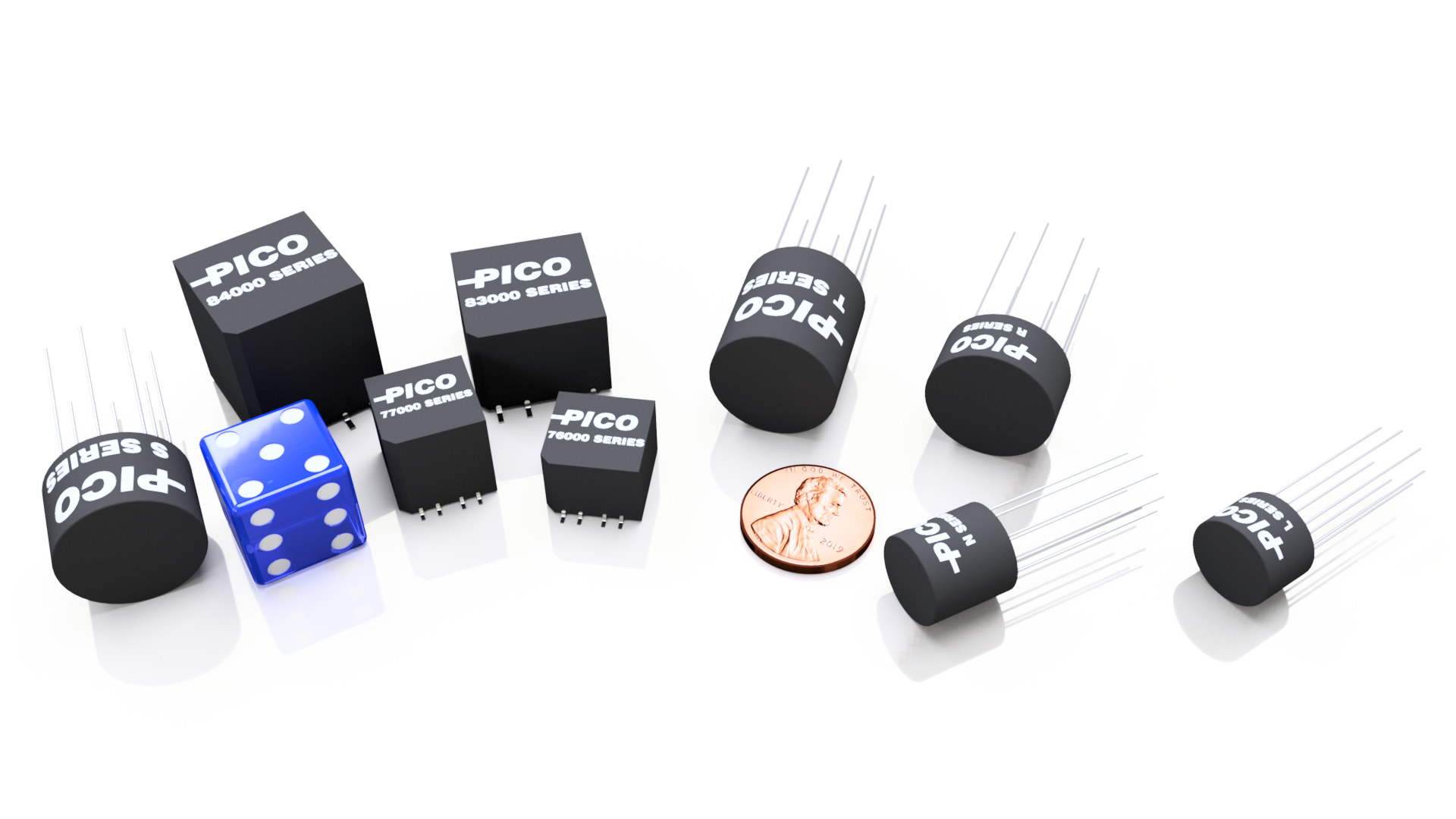

Miniature Power Transformer render 1

Series 76000, 77000, 82000, 83000, 84000, L, N, R, S & T

0.375VA to 2.4VA at 400Hz

400Hz power transformers are used in various energy conversion power supplies. They are crucial to aerospace and military industry for aircraft systems as the lightweight solution to the traditional 50/60Hz heavy electronics. The application is not limited to flight systems, but also in stationary controls, airport equipment, and vehicle mobility systems. This miniature class of 400Hz power transformers has an operating temperature range from -55°C to +130°C, with 90°C maximum ambient temperature.

Download Datasheet

Custom Solutions

Didn’t find exactly what you need or need a slight change?

Submit your custom specifications

Features

  • Extreme resistance to impact, shock, and vibration
  • Manufactured to MIL-PRF-27, Class S, Grade 5
  • High reliability for space and mission critical applications
  • Ultra miniature in size and minimalistic design
  • Design layouts in through-hole or surface mount types
  • 115VAC or 26VAC primary

Options

  • Screening and qualification criteria to flight standard
  • Fully RoHS compliant or with exemption 7(a)
  • Modifications to mechanical design and electrical characteristics
  • Custom new design and parameters

Mounting

Input Voltage (Vrms)

Output Voltage (Vrms)

Maximum Power (VA)

Part Number MountingOperating Frequency (±20 Hz)Input Voltage (Vrms)Output Voltage — Series Connection (Vrms)Output Current — Series Connection (mA)Maximum Power (VA)Typical Regulation (%)Dielectric Withstanding Voltage (Vrms)Size (L x W x H) inchesSize (D x H) inchesDownloads
T-22975Through Hole400263107.72.417868 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22970Through Hole400262758.72.417770 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22965Through Hole400262509.62.417700 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22960Through Hole4002622010.92.417616 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22955Through Hole40026200122.417560 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22950Through Hole4002617513.72.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22945Through Hole4002615715.32.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22940Through Hole4002613817.42.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22935Through Hole4002612319.52.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22930Through Hole4002611520.92.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22925Through Hole40026100242.417300 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22920Through Hole400268827.32.417300 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22915Through Hole4002680302.417300 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22910Through Hole400266835.32.417300 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22905Through Hole400266338.22.417300 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22900Through Hole400265642.92.417300 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22895Through Hole4002648502.417200 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22890Through Hole400264355.82.417200 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22885Through Hole400263961.52.417200 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22880Through Hole400263666.72.417200 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22875Through Hole400263177.42.417200 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22870Through Hole400262885.72.417200 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22865Through Hole40026241002.417200 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22860Through Hole40026221092.417200 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22855Through Hole40026201202.417200 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22850Through Hole40026181332.417200 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22845Through Hole40026161502.417200 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22840Through Hole40026141712.417200 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22835Through Hole4002612.81882.417200 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22830Through Hole40026102402.417200 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22825Through Hole4002683002.417200 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22820Through Hole400266.33812.417200 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22815Through Hole4002654802.417200 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22810Through Hole4001153107.72.417868 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22805Through Hole4001152758.72.417770 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22800Through Hole4001152509.62.417700 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22795Through Hole40011522010.92.417616 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22790Through Hole400115200122.417560 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22785Through Hole40011517513.72.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22780Through Hole40011515715.32.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22775Through Hole40011513817.42.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22770Through Hole40011512319.52.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22765Through Hole40011511520.92.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22760Through Hole400115100242.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22755Through Hole4001158827.32.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22750Through Hole40011580302.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22745Through Hole4001156835.32.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22740Through Hole4001156338.22.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22735Through Hole4001155642.92.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22730Through Hole40011548502.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22725Through Hole4001154355.82.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22720Through Hole4001153961.52.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22715Through Hole4001153666.72.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22710Through Hole4001153177.42.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22705Through Hole4001152885.72.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22700Through Hole400115241002.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22695Through Hole400115221092.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22690Through Hole400115201202.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22685Through Hole400115181332.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22680Through Hole400115161502.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22675Through Hole400115141712.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22670Through Hole40011512.81882.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22665Through Hole40011510.02402.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22660Through Hole4001158.03002.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22655Through Hole4001156.33812.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
T-22650Through Hole40011554802.417500 – 0.75″ x 0.82″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21975Through Hole400263105.41.6724868 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21970Through Hole400262756.11.6724770 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21965Through Hole400262506.81.724700 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21960Through Hole400262207.71.6724616 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21955Through Hole400262008.41.6724560 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21950Through Hole400261759.61.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21945Through Hole4002615710.81.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21940Through Hole4002613812.21.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21935Through Hole4002612313.71.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21930Through Hole4002611514.71.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21925Through Hole4002610016.91.6724300 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21920Through Hole400268819.21.6724300 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21915Through Hole400268021.11.6724300 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21910Through Hole400266824.91.6724300 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21905Through Hole400266326.91.6724300 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21900Through Hole400265630.21.6724300 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21895Through Hole400264835.21.6724200 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21890Through Hole400264339.31.6724200 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21885Through Hole400263943.31.6724200 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21880Through Hole400263646.91.6724200 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21875Through Hole400263154.51.6724200 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21870Through Hole400262860.41.6724200 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21865Through Hole400262470.41.6724200 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21860Through Hole400262276.81.6724200 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21855Through Hole400262084.51.6724200 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21850Through Hole400261893.91.6724200 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21845Through Hole40026161061.6724200 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21840Through Hole40026141211.6724200 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21835Through Hole4002612.81321.6724200 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21830Through Hole40026101691.6724200 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21825Through Hole4002682111.6724200 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21820Through Hole400266.32681.6724200 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21815Through Hole4002653381.6724200 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21810Through Hole4001153105.41.6724868 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21805Through Hole4001152756.11.6724770 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21800Through Hole4001152506.81.724700 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21795Through Hole4001152207.71.6724616 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21790Through Hole4001152008.41.6724560 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21785Through Hole4001151759.61.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21780Through Hole40011515710.81.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21775Through Hole40011513812.21.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21770Through Hole40011512313.71.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21765Through Hole40011511514.71.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21760Through Hole40011510016.91.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21755Through Hole4001158819.21.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21750Through Hole4001158021.11.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21745Through Hole4001156824.91.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21740Through Hole4001156326.91.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21735Through Hole4001155630.21.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21730Through Hole4001154835.21.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21725Through Hole4001154339.31.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21720Through Hole4001153943.31.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21715Through Hole4001153646.91.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21710Through Hole4001153154.51.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21705Through Hole4001152860.41.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21700Through Hole4001152470.41.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21695Through Hole4001152276.81.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21690Through Hole4001152084.51.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21685Through Hole4001151893.91.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21680Through Hole400115161061.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21675Through Hole400115141211.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21670Through Hole40011512.81321.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21665Through Hole40011510.01691.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21660Through Hole4001158.02111.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21655Through Hole4001156.32681.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
S-21650Through Hole40011553381.6724500 – 0.75″ x 0.52″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20955Through Hole400262005.1124560 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20950Through Hole400261755.8124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20945Through Hole400261576.5124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20940Through Hole400261387.4124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20935Through Hole400261238.3124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20930Through Hole400261158.9124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20925Through Hole4002610010.2124300 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20920Through Hole400268811.6124300 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20915Through Hole400268012.1124300 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20910Through Hole400266815124300 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20905Through Hole400266316.2124300 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20900Through Hole400265618.2124300 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20895Through Hole400264821.1124200 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20890Through Hole400264323.7124200 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20885Through Hole400263926.2124200 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20880Through Hole400263628.3124200 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20875Through Hole400263132.9124200 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20870Through Hole400262836.4124200 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20865Through Hole400262442.5124200 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20860Through Hole400262246.4124200 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20855Through Hole400262051124200 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20850Through Hole400261856.7124200 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20845Through Hole400261663.8124200 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20840Through Hole400261472.9124200 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20835Through Hole4002612.879.7124200 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20830Through Hole4002610102124200 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20825Through Hole400268128124200 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20820Through Hole400266.3162124200 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20815Through Hole400265204124200 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20790Through Hole4001152005.1124560 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20785Through Hole4001151755.8124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20780Through Hole4001151576.5124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20775Through Hole4001151387.4124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20770Through Hole4001151238.3124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20765Through Hole4001151158.9124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20760Through Hole40011510010.2124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20755Through Hole4001158811.6124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20750Through Hole4001158012.1124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20745Through Hole4001156815124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20740Through Hole4001156316.2124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20735Through Hole4001155618.2124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20730Through Hole4001154821.1124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20725Through Hole4001154323.7124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20720Through Hole4001153926.2124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20715Through Hole4001153628.3124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20710Through Hole4001153132.9124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20705Through Hole4001152836.4124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20700Through Hole4001152442.5124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20695Through Hole4001152246.4124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20690Through Hole4001152051124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20685Through Hole4001151856.7124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20680Through Hole4001151663.8124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20675Through Hole4001151472.9124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20670Through Hole40011512.879.7124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20665Through Hole40011510.0102124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20660Through Hole4001158.0128124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20655Through Hole4001156.3162124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
R-20650Through Hole4001155204124500 – 0.75″ x 0.38″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6979Through Hole400261156.50.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6978Through Hole400261008.50.8524300 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6977Through Hole40026888.50.7424300 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6976Through Hole40026809.40.7424300 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6974Through Hole4002668110.7424300 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6973Through Hole400266311.90.7424300 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6972Through Hole400265613.20.7424300 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6971Through Hole400264815.60.7424200 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6969Through Hole400264317.40.7424200 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6968Through Hole400263919.20.7424200 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6967Through Hole400263620.80.7424200 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6966Through Hole4002631240.7424200 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6964Through Hole400262826.80.7424200 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6963Through Hole4002624310.7424200 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6962Through Hole4002622340.7424200 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6961Through Hole400262037.50.7424200 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6959Through Hole400261841.70.7424200 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6958Through Hole4002616470.7424200 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6957Through Hole400261453.60.7424200 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6956Through Hole4002612.858.60.7424200 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6954Through Hole4002610750.7424200 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6953Through Hole400268940.7424200 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6952Through Hole400266.31190.7424200 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6951Through Hole4002651500.7424200 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6948Through Hole40011551500.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6947Through Hole4001156.31190.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6946Through Hole4001158.0940.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6945Through Hole40011510.0750.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6940Through Hole40011512.858.60.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6937Through Hole4001151453.60.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6935Through Hole40011516470.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6934Through Hole4001151841.70.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6933Through Hole4001152037.50.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6932Through Hole40011522340.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6930Through Hole40011524310.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6929Through Hole4001152826.80.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6927Through Hole40011531240.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6925Through Hole4001153620.80.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6924Through Hole4001153919.20.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6923Through Hole4001154317.40.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6922Through Hole4001154815.60.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6920Through Hole4001155613.20.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6917Through Hole4001156311.90.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6915Through Hole40011568110.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6910Through Hole400115809.40.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6905Through Hole400115888.50.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6902Through Hole4001151008.50.8524500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
N-6900Through Hole4001151156.50.7424500 – 0.51″ x 0.50″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8979Through Hole400261153.20.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8978Through Hole400261003.70.3724300 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8977Through Hole40026884.20.3724300 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8976Through Hole40026804.60.3724300 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8974Through Hole40026685.50.3724300 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8973Through Hole400266360.3724300 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8972Through Hole40026566.60.3724300 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8971Through Hole40026487.80.3724200 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8969Through Hole40026438.70.3724200 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8968Through Hole40026399.60.3724200 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8967Through Hole400263610.40.3724200 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8966Through Hole4002631120.3724200 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8964Through Hole400262813.40.3724200 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8963Through Hole400262415.50.3724200 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8962Through Hole4002622170.3724200 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8961Through Hole400262018.80.3724200 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8959Through Hole400261820.80.3724200 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8958Through Hole4002616230.3724200 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8957Through Hole400261426.80.3724200 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8956Through Hole4002612.8290.3724200 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8954Through Hole400261037.50.3724200 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8953Through Hole400268470.3724200 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8952Through Hole400266.359.50.3724200 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8951Through Hole400265750.3724200 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8948Through Hole4001155750.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8947Through Hole4001156.359.50.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8946Through Hole4001158.0470.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8945Through Hole40011510.037.50.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8940Through Hole40011512.8290.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8937Through Hole4001151426.80.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8935Through Hole40011516230.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8934Through Hole4001151820.80.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8933Through Hole4001152018.80.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8932Through Hole40011522170.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8930Through Hole4001152415.50.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8929Through Hole4001152813.40.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8927Through Hole40011531120.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8925Through Hole4001153610.40.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8924Through Hole400115399.60.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8923Through Hole400115438.70.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8922Through Hole400115487.80.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8920Through Hole400115566.60.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8917Through Hole4001156360.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8915Through Hole400115685.50.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8910Through Hole400115804.60.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8905Through Hole400115884.20.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8902Through Hole4001151003.70.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
L-8900Through Hole4001151153.20.3724500 – 0.51″ x 0.35″
DatasheetTechnical DrawingElectrical Schematic3D Step File
84975Surface Mount400263107.72.4178680.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84970Surface Mount400262758.72.4177700.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84965Surface Mount400262509.62.4177000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84960Surface Mount4002622010.92.4176160.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84955Surface Mount40026200122.4175600.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84950Surface Mount4002617513.72.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84945Surface Mount4002615715.32.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84940Surface Mount4002613817.42.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84935Surface Mount4002612319.52.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84930Surface Mount4002611520.92.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84925Surface Mount40026100242.4173000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84920Surface Mount400268827.32.4173000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84915Surface Mount4002680302.4173000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84910Surface Mount400266835.32.4173000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84905Surface Mount400266338.22.4173000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84900Surface Mount400265642.92.4173000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84895Surface Mount4002648502.4172000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84890Surface Mount400264355.82.4172000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84885Surface Mount400263961.52.4172000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84880Surface Mount400263666.72.4172000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84875Surface Mount400263177.42.4172000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84870Surface Mount400262885.72.4172000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84865Surface Mount40026241002.4172000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84860Surface Mount40026221092.4172000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84855Surface Mount40026201202.4172000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84850Surface Mount40026181332.4172000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84845Surface Mount40026161502.4172000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84840Surface Mount40026141712.4172000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84835Surface Mount4002612.81882.4172000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84830Surface Mount40026102402.4172000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84825Surface Mount4002683002.4172000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84820Surface Mount400266.33812.4172000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84815Surface Mount4002654802.4172000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84810Surface Mount4001153107.72.4178680.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84805Surface Mount4001152758.72.4177700.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84800Surface Mount4001152509.62.4177000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84795Surface Mount40011522010.92.4176160.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84790Surface Mount400115200122.4175600.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84785Surface Mount40011517513.72.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84780Surface Mount40011515715.32.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84775Surface Mount40011513817.42.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84770Surface Mount40011512319.52.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84765Surface Mount40011511520.92.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84760Surface Mount400115100242.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84755Surface Mount4001158827.32.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84750Surface Mount40011580302.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84745Surface Mount4001156835.32.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84740Surface Mount4001156338.22.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84735Surface Mount4001155642.92.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84730Surface Mount40011548502.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84725Surface Mount4001154355.82.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84720Surface Mount4001153961.52.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84715Surface Mount4001153666.72.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84710Surface Mount4001153177.42.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84705Surface Mount4001152885.72.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84700Surface Mount400115241002.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84695Surface Mount400115221092.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84690Surface Mount400115201202.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84685Surface Mount400115181332.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84680Surface Mount400115161502.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84675Surface Mount400115141712.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84670Surface Mount40011512.81882.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84665Surface Mount400115102402.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84660Surface Mount40011583002.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84655Surface Mount4001156.33812.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
84650Surface Mount40011554802.4175000.80″ x 0.80″ x 0.92″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83975Surface Mount400263105.41.67248680.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83970Surface Mount400262756.11.67247700.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83965Surface Mount400262506.81.7247000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83960Surface Mount400262207.71.67246160.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83955Surface Mount400262008.41.67245600.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83950Surface Mount400261759.61.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83945Surface Mount4002615710.81.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83940Surface Mount4002613812.21.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83935Surface Mount4002612313.71.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83930Surface Mount4002611514.71.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83925Surface Mount4002610016.91.67243000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83920Surface Mount400268819.21.67243000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83915Surface Mount400268021.11.67243000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83910Surface Mount400266824.91.67243000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83905Surface Mount400266326.91.67243000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83900Surface Mount400265630.21.67243000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83895Surface Mount400264835.21.67242000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83890Surface Mount400264339.31.67242000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83885Surface Mount400263943.31.67242000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83880Surface Mount400263646.91.67242000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83875Surface Mount400263154.51.67242000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83870Surface Mount400262860.41.67242000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83865Surface Mount400262470.41.67242000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83860Surface Mount400262276.81.67242000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83855Surface Mount400262084.51.67242000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83850Surface Mount400261893.91.67242000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83845Surface Mount40026161061.67242000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83840Surface Mount40026141211.67242000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83835Surface Mount4002612.81321.67242000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83830Surface Mount40026101691.67242000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83825Surface Mount4002682111.67242000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83820Surface Mount400266.32681.67242000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83815Surface Mount4002653381.67242000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83810Surface Mount4001153105.41.67248680.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83805Surface Mount4001152756.11.67247700.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83800Surface Mount4001152506.81.7247000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83795Surface Mount4001152207.71.67246160.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83790Surface Mount4001152008.41.67245600.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83785Surface Mount4001151759.61.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83780Surface Mount40011515710.81.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83775Surface Mount40011513812.21.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83770Surface Mount40011512313.71.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83765Surface Mount40011511514.71.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83760Surface Mount40011510016.91.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83755Surface Mount4001158819.21.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83750Surface Mount4001158021.11.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83745Surface Mount4001156824.91.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83740Surface Mount4001156326.91.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83735Surface Mount4001155630.21.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83730Surface Mount4001154835.21.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83725Surface Mount4001154339.31.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83720Surface Mount4001153943.31.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83715Surface Mount4001153646.91.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83710Surface Mount4001153154.51.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83705Surface Mount4001152860.41.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83700Surface Mount4001152470.41.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83695Surface Mount4001152276.81.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83690Surface Mount4001152084.51.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83685Surface Mount4001151893.91.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83680Surface Mount400115161061.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83675Surface Mount400115141211.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83670Surface Mount40011512.81321.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83665Surface Mount400115101691.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83660Surface Mount40011582111.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83655Surface Mount4001156.32681.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
83650Surface Mount40011553381.67245000.80″ x 0.80″ x 0.61″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82955Surface Mount400262005.11245600.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82950Surface Mount400261755.81245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82945Surface Mount400261576.51245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82940Surface Mount400261387.41245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82935Surface Mount400261238.31245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82930Surface Mount400261158.91245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82925Surface Mount4002610010.21243000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82920Surface Mount400268811.61243000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82915Surface Mount400268012.11243000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82910Surface Mount4002668151243000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82905Surface Mount400266316.21243000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82900Surface Mount400265618.21243000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82895Surface Mount400264821.11242000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82890Surface Mount400264323.71242000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82885Surface Mount400263926.21242000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82880Surface Mount400263628.31242000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82875Surface Mount400263132.91242000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82870Surface Mount400262836.41242000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82865Surface Mount400262442.51242000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82860Surface Mount400262246.41242000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82855Surface Mount4002620511242000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82850Surface Mount400261856.71242000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82845Surface Mount400261663.81242000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82840Surface Mount400261472.91242000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82835Surface Mount4002612.879.71242000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82830Surface Mount40026101021242000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82825Surface Mount4002681281242000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82820Surface Mount400266.31621242000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82815Surface Mount4002652041242000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82790Surface Mount4001152005.11245600.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82785Surface Mount4001151755.81245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82780Surface Mount4001151576.51245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82775Surface Mount4001151387.41245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82770Surface Mount4001151238.31245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82765Surface Mount4001151158.91245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82760Surface Mount40011510010.21245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82755Surface Mount4001158811.61245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82750Surface Mount4001158012.11245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82745Surface Mount40011568151245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82740Surface Mount4001156316.21245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82735Surface Mount4001155618.21245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82730Surface Mount4001154821.11245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82725Surface Mount4001154323.71245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82720Surface Mount4001153926.21245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82715Surface Mount4001153628.31245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82710Surface Mount4001153132.91245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82705Surface Mount4001152836.41245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82700Surface Mount4001152442.51245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82695Surface Mount4001152246.41245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82690Surface Mount40011520511245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82685Surface Mount4001151856.71245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82680Surface Mount4001151663.81245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82675Surface Mount4001151472.91245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82670Surface Mount40011512.879.71245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82665Surface Mount400115101021245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82660Surface Mount40011581281245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82655Surface Mount4001156.31621245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
82650Surface Mount40011552041245000.80″ x 0.80″ x 0.46″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77928Surface Mount400261156.50.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77927Surface Mount400261008.50.85243000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77926Surface Mount40026888.50.74243000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77925Surface Mount40026809.40.74243000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77923Surface Mount4002668110.74243000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77922Surface Mount400266311.90.74243000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77921Surface Mount400265613.20.74243000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77920Surface Mount400264815.60.74242000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77919Surface Mount400264317.40.74242000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77918Surface Mount400263919.20.74242000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77917Surface Mount400263620.80.74242000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77916Surface Mount4002631240.74242000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77914Surface Mount400262826.80.74242000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77913Surface Mount4002624310.74242000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77912Surface Mount4002622340.74242000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77911Surface Mount400262037.50.74242000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77909Surface Mount400261841.70.74242000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77908Surface Mount4002616470.74242000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77907Surface Mount400261453.60.74242000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77906Surface Mount4002612.858.60.74242000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77905Surface Mount4002610750.74242000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77904Surface Mount400268940.74242000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77903Surface Mount400266.31190.74242000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77902Surface Mount4002651500.74242000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77900Surface Mount40011551500.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77899Surface Mount4001156.31190.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77898Surface Mount4001158940.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77897Surface Mount40011510750.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77892Surface Mount40011512.858.60.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77889Surface Mount4001151453.60.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77887Surface Mount40011516470.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77886Surface Mount4001151841.70.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77885Surface Mount4001152037.50.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77884Surface Mount40011522340.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77882Surface Mount40011524310.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77881Surface Mount4001152826.80.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77879Surface Mount40011531240.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77877Surface Mount4001153620.80.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77876Surface Mount4001153919.20.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77875Surface Mount4001154317.40.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77874Surface Mount4001154815.60.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77872Surface Mount4001155613.20.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77869Surface Mount4001156311.90.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77867Surface Mount40011568110.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77862Surface Mount400115809.40.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77857Surface Mount400115888.50.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77854Surface Mount4001151008.50.85245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
77852Surface Mount4001151156.50.74245000.55″ x 0.55″ x 0.57″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76928Surface Mount400261153.20.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76927Surface Mount400261003.70.37243000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76926Surface Mount40026884.20.37243000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76925Surface Mount40026804.60.37243000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76923Surface Mount40026685.50.37243000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76922Surface Mount400266360.37243000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76921Surface Mount40026566.60.37243000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76920Surface Mount40026487.80.37242000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76919Surface Mount40026438.70.37242000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76918Surface Mount40026399.60.37242000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76917Surface Mount400263610.40.37242000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76916Surface Mount4002631120.37242000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76914Surface Mount400262813.40.37242000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76913Surface Mount400262415.50.37242000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76912Surface Mount4002622170.37242000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76911Surface Mount400262018.80.37242000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76909Surface Mount400261820.80.37242000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76908Surface Mount4002616230.37242000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76907Surface Mount400261426.80.37242000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76906Surface Mount4002612.8290.37242000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76905Surface Mount400261037.50.37242000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76904Surface Mount400268470.37242000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76903Surface Mount400266.359.50.37242000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76902Surface Mount400265750.37242000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76900Surface Mount4001155750.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76899Surface Mount4001156.359.50.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76898Surface Mount4001158470.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76897Surface Mount4001151037.50.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76892Surface Mount40011512.8290.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76889Surface Mount4001151426.80.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76887Surface Mount40011516230.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76886Surface Mount4001151820.80.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76885Surface Mount4001152018.80.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76884Surface Mount40011522170.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76882Surface Mount4001152415.50.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76881Surface Mount4001152813.40.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76879Surface Mount40011531120.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76877Surface Mount4001153610.40.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76876Surface Mount400115399.60.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76875Surface Mount400115438.70.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76874Surface Mount400115487.80.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76872Surface Mount400115566.60.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76869Surface Mount4001156360.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76867Surface Mount400115685.50.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76862Surface Mount400115804.60.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76857Surface Mount400115884.20.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76854Surface Mount4001151003.70.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
76852Surface Mount4001151153.20.37245000.55″ x 0.55″ x 0.42″ –
DatasheetTechnical DrawingElectrical SchematicLand Pattern3D Step File
