High Voltage DC-DC Converters

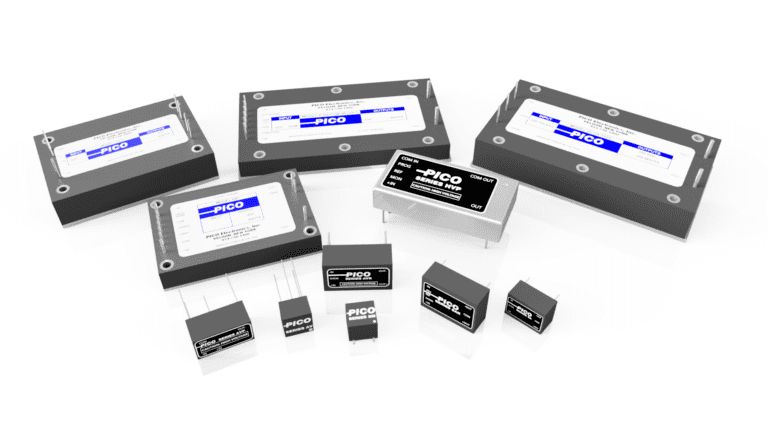

Pico Electronics, a leader in miniature power components, offers an extensive range of High Voltage DC-DC converters designed for critical applications in aerospace, defense, and commercial industries. These converters are renowned for their reliability, compact size, and impressive performance in harsh environments.

Pico’s High Voltage DC-DC converters boast output voltages ranging from 100 VDC to an industry-leading 10,000 VDC. They are available in various input voltage options, with positive or negative output voltages. With power ratings from 0.75 to 300 Watts, these converters cater to a wide spectrum of power applications.

Picos’ product lineup includes ultra-miniature regulated, isolated, programmable, and adjustable modules. Many models can be upgraded to operate in extreme temperature conditions, from -55°C to +85°C, making them suitable for rugged applications. Pico’s High Voltage DC-DC converters are available in surface mount, through-hole, and terminal strip configurations, offering flexibility in design integration. These products exemplify Pico’s commitment to pushing the boundaries of miniaturization and high voltage capabilities in power conversion technology.

Part Number	Series	Mounting	# of Outputs	Output Type	Nominal Input Voltage (VDC)	Input Voltage Range (VDC)	Single Output Voltage (VDC)	Single Max Output Power (W)	Dual Output Voltage (VDC)	Dual Max Output Power (W)	Downloads

Part Number	Series	Mounting	# of Outputs	Output Type	Nominal Input Voltage (VDC)	Input Voltage Range (VDC)	Single Output Voltage (VDC)	Single Max Output Power (W)	Dual Output Voltage (VDC)	Dual Max Output Power (W)	Downloads
12AV100Opens a new window	AV (100-1kV)	Through Hole	Single	Proportional	12	–	100	1.25	–	–	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV1000Opens a new window	AV (100-1kV)	Through Hole	Single	Proportional	12	–	1000	1.25	–	–	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV100DOpens a new window	AV (100-1kV)	Through Hole	Dual	Proportional	12	–	–	–	±100	±0.625	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV150Opens a new window	AV (100-1kV)	Through Hole	Single	Proportional	12	–	150	1.25	–	–	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV1500Opens a new window	AV (1500-10kV)	Through Hole	Single	Proportional	12	–	1500	1.25	–	–	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV1500-NOpens a new window	AV (1500-10kV)	Through Hole	Single	Proportional	12	–	-1500	1.25	–	–	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV1500-POpens a new window	AV (1500-10kV)	Through Hole	Single	Proportional	12	–	+1500	1.25	–	–	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV150DOpens a new window	AV (100-1kV)	Through Hole	Dual	Proportional	12	–	–	–	±150	±0.625	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV200Opens a new window	AV (100-1kV)	Through Hole	Single	Proportional	12	–	200	1.25	–	–	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV2000Opens a new window	AV (1500-10kV)	Through Hole	Single	Proportional	12	–	2000	1.25	–	–	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV2000-NOpens a new window	AV (1500-10kV)	Through Hole	Single	Proportional	12	–	-2000	1.25	–	–	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV2000-POpens a new window	AV (1500-10kV)	Through Hole	Single	Proportional	12	–	+2000	1.25	–	–	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV200DOpens a new window	AV (100-1kV)	Through Hole	Dual	Proportional	12	–	–	–	±200	±0.625	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV250Opens a new window	AV (100-1kV)	Through Hole	Single	Proportional	12	–	250	1.25	–	–	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV2500Opens a new window	AV (1500-10kV)	Through Hole	Single	Proportional	12	–	2500	1.25	–	–	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV2500-NOpens a new window	AV (1500-10kV)	Through Hole	Single	Proportional	12	–	-2500	1.25	–	–	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV2500-POpens a new window	AV (1500-10kV)	Through Hole	Single	Proportional	12	–	+2500	1.25	–	–	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV250DOpens a new window	AV (100-1kV)	Through Hole	Dual	Proportional	12	–	–	–	±250	±0.625	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV300Opens a new window	AV (100-1kV)	Through Hole	Single	Proportional	12	–	300	1.25	–	–	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12AV3000Opens a new window	AV (1500-10kV)	Through Hole	Single	Proportional	12	–	3000	1.25	–	–	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
