Series L, P, 76000 & CSL

≤ 600mW at 300Hz to 75KHz

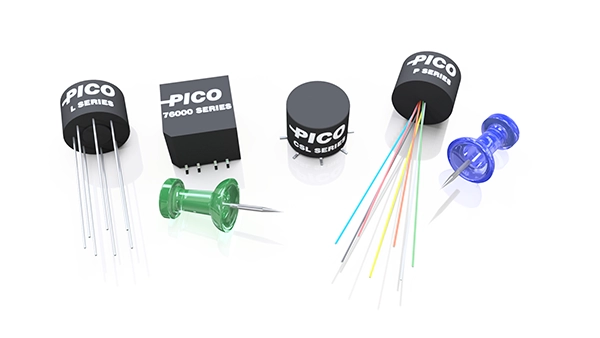

The L & P and 76000 & CSL series are ultra-miniature transformers in an encapsulated package with design layouts as through-hole, insulated leads, or surface mount types. They can operate over a wide temperature range of -55°C to +130°C. Our proprietary materials and methods allow extreme temperatures of vapor phase, IR or other reflow procedures without degrading the high reliability of their physical form and electrical performance.

Download Datasheet

Features

Extreme resistance to impact, shock, and vibration
Manufactured to MIL-PRF-27, Class S, Grade 5
High reliability for space and mission critical applications
Ultra miniature in size and minimalistic design
Design layouts in through-hole with insulated leads option or surface mount types in round/square packages
Available with magnetic shielding and/or electrostatic shielding
Certain parts are QPL approved

Options

Screening and qualification criteria to flight standard
Capability to thermal shock up to 300 cycles
Extra layers of magnetic shielding
Fully RoHS compliant or with exemption 7(a)
Modifications to mechanical design and electrical characteristics
Custom new design and parameters

Part Number	Mounting	Frequency Range (±3 dB)	≥ 1kHz Maximum Power (W)	≥ 400Hz Power (W)	≥ 300Hz Power (W)	Primary Impedance (Ω)	Secondary Impedance (Ω)	Turns Ratio (Prim/Sec) Series Connection	Turns Ratio (Prim/Sec) Parallel Connection	Primary Unbalanced DC Current (mA)	Primary DC Resistance (Ω)	Secondary DC Resistance (Ω) Series	Secondary DC Resistance (Ω) Parallel	Size (L x W x H) inches	Size (D x H) inches	Downloads
P-9815	Insulated Leads	300 Hz to 75 KHz	0.1	0.1	0.1	100,000	10,000	3.16:1	6.32:1	0.4	8750	1535	385	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9810	Insulated Leads	300 Hz to 75 KHz	0.1	0.1	0.1	100,000	500	14.1:1	28.3:1	0.4	8750	68	17	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9805	Insulated Leads	300 Hz to 75 KHz	0.1	0.1	0.1	100,000	100	31.6:1	63.2:1	0.4	8750	15	3.8	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9800	Insulated Leads	300 Hz to 75 KHz	0.1	0.1	0.1	100,000	60	40.8:1	81.6:1	0.4	8750	9.2	2.3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9795	Insulated Leads	300 Hz to 75 KHz	0.1	0.1	0.1	95,000	15,000	2.52:1	5.03:1	0.4	8400	2250	563	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9790	Insulated Leads	300 Hz to 75 KHz	0.1	0.1	0.1	90,000	10,000	3:1	6:1	0.4	8140	1520	380	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9787	Insulated Leads	300 Hz to 75 KHz	0.12	0.12	0.12	80,000	15,000	2.3:1	4.6:1	0.4	6130	2250	563	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9785	Insulated Leads	300 Hz to 75 KHz	0.16	0.16	0.16	62,500	50	35.4:1	70.7:1	0.5	5445	8.7	2.2	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9780	Insulated Leads	300 Hz to 75 KHz	0.16	0.16	0.16	60,000	15,000	2:1	4:1	0.5	5275	2250	563	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9779	Insulated Leads	300 Hz to 75 KHz	0.2	0.2	0.2	50,000	600	9.13:1	18.26:1	0.6	4850	75	18.5	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9777	Insulated Leads	300 Hz to 75 KHz	0.2	0.2	0.2	50,000	500	10:1	20:1	0.6	4850	68	17	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9775	Insulated Leads	300 Hz to 75 KHz	0.2	0.2	0.2	50,000	200	15.8:1	31.6:1	0.6	4850	27	6.7	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9770	Insulated Leads	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	40,000	1:1	–	0.7	3400	4750	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9765	Insulated Leads	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	20,000	1.41:1	2.83:1	0.7	3400	2700	675	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9760	Insulated Leads	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	4000	3.16:1	6.32:1	0.7	3400	476	119	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9755	Insulated Leads	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	2000	4.47:1	8.94:1	0.7	3400	268	67	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9750	Insulated Leads	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	400	10:1	20:1	0.7	3400	57	14.3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9745	Insulated Leads	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	30,000	1:1	–	0.8	3000	3310	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9740	Insulated Leads	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	10,000	1.73:1	3.46:1	0.8	2400	1520	380	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9735	Insulated Leads	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	5000	2.45:1	4.9:1	0.8	2400	673	169	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9734	Insulated Leads	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	200	12.25:1	24.5:1	0.8	2400	29	7.2	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9732	Insulated Leads	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	500	7.75:1	15.5:1	0.8	2400	68	17	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9730	Insulated Leads	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	1200	5:1	10:1	0.8	2400	156	39	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9725	Insulated Leads	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	50	24.5:1	49:1	0.8	2400	7	1.75	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9720	Insulated Leads	300 Hz to 75 KHz	0.4	0.4	0.3	25,000	1000	5:1	10:1	0.8	2170	120	30	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9715	Insulated Leads	300 Hz to 75 KHz	0.4	0.4	0.3	25,000	500	7.07:1	14.14:1	0.8	2170	68	17	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9710	Insulated Leads	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	20,000	1:1	–	1	1560	2727	682	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9705	Insulated Leads	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	10,000	1.41:1	2.83:1	1	1560	1520	380	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9700	Insulated Leads	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	5000	2:1	4:1	1	1560	672	168	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9695	Insulated Leads	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	1000	4.47:1	8.94:1	1	1560	121	30.5	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9690	Insulated Leads	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	800	5:1	10:1	1	1560	108	27	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9685	Insulated Leads	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	600	5.77:1	11.55:1	1	1560	75	19	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9680	Insulated Leads	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	500	6.33:1	12.65:1	1	1560	68	17	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9675	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	16,000	1000	4:1	8:1	1	1343	115	29	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9670	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	15,000	1:1	2:1	1	1305	1800	450	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9665	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	15,000	1:1	–	1	1305	1800	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9660	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	10,000	1.22:1	2.45:1	1	1305	1215	304	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9655	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	600	5:1	10:1	1	1305	72.5	18	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9652	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	500	5.48:1	10.95:1	1	1305	53	13	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9650	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	400	6.12:1	12.24:1	1	1305	47	12	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9645	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	10,000	1:1	–	1.4	1060	1215	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9640	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	10,000	1:1	2:1	1.4	866	1215	304	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9635	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	7500	1.15:1	2.3:1	1.4	850	772	193	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9630	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	5000	1.41:1	2.83:1	1.4	850	630	158	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9625	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	2000	2.24:1	4.47:1	1.4	850	255	64	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9620	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	1500	2.58:1	5.16:1	1.4	850	177	44	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9615	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	1200	2.89:1	5.77:1	1.4	850	158	39.5	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9610	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	1000	3.16:1	6.32:1	1.4	850	115	29	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9605	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	600	4.08:1	8.16:1	1.4	850	74	18.5	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9600	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	500	4.47:1	8.94:1	1.4	850	67	17	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9595	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	200	7.07:1	14.14:1	1.4	839	27	6.7	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9590	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	100	10:1	20:1	1.4	839	12	3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9585	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	16	25:1	50:1	1.4	1048	3	0.75	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9580	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	12.8	28:1	56:1	1.4	1048	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9575	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	9000	9000	1:1	–	1.4	796	1100	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9570	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	8000	1200	2.58:1	–	1.5	750	158	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9565	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	8000	1000	2.83:1	5.66:1	1.5	750	115	29	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9560	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	8000	12.8	25:1	50:1	1.5	750	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9555	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	7500	7500	1:1	–	1.5	750	828	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9550	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	7500	2500	1.73:1	3.46:1	1.5	600	305	77	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9545	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	7500	600	3.54:1	7.07:1	1.5	600	78	19.5	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9540	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	7500	100	8.66:1	17.3:1	1.5	600	12	3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9535	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	7500	50	12.2:1	24.5:1	1.5	600	7	1.75	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9530	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	5000	5000	1:1	2:1	2	390	538	135	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9525	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	5000	500	3.16:1	6.32:1	2	350	67	17	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9520	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	4000	8000	1:1.41	–	2	350	1062	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9515	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	4000	1000	2:1	4:1	2	350	115	29	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9514	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	4000	600	2.58:1	5.16:1	2	350	76	19	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9512	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	4000	16	15.8:1	31.6:1	2	350	3	0.75	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9510	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	3600	3600	1:1	2:1	2.5	330	366	92	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9505	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	3000	3000	1:1	–	2.5	304	335	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9500	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	3000	3000	1:1	2:1	2.5	243	335	84	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9497	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	2500	2500	1:1	2:1	2.5	220	305	76	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9495	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	2000	8000	1:2	1:1	3	198	850	213	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9490	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	2000	2000	1:1	–	3	198	218	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9485	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	2000	2000	1:1	2:1	3	198	218	55	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9483	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	2000	8	15.8:1	31.6:1	3	210	1.2	0.3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9480	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	1600	12.8	11.2:1	22.4:1	3.5	130	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9475	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	1500	1500	1:1	–	3.5	126	176	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9470	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	1500	600	1.58:1	–	3.5	126	94	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9465	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	1500	500	1.73:1	3.46:1	3.5	126	68	17	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9460	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	1500	12	11.2:1	22.4:1	3.5	126	1.6	0.4	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9455	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	1200	1200	1:1	–	4	111	125	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9450	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	1200	1200	1:1	2:1	4	113	126	31.6	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9445	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	1200	500	1.55:1	3.1:1	4	113	54	13.5	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9440	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	1200	12.8	9.68:1	19.4:1	4	113	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9435	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	1060	12.8	9.1:1	18.2:1	4	108	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9430	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	1000	1000	1:1	2:1	4.5	103	115	28	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9425	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	1000	50	4.47:1	8.94:1	4.5	103	6.4	1.6	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9420	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	1000	12	9.13:1	18.3:1	4.5	103	1.6	0.4	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9415	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	900	600	1.22:1	2.45:1	4.5	79	75	19	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9410	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	800	800	1:1	2:1	5	75	105	26	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9405	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	800	48	4.08:1	8.16:1	5	75	6.8	1.7	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9400	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	800	12.8	7.9:1	15.8:1	5	75	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9395	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	700	100	2.65:1	5.29:1	5	69	12	3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9390	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	640	12.8	7.07:1	14.14:1	5.5	66	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9387	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	600	1200	1:1.41	1.41:1	5.5	53	105	26	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9385	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	600	600	1:1	–	5.5	53	75	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9380	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	600	600	1:1	2:1	5.5	57	79	20	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9375	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	600	200	1.73:1	3.46:1	5.5	53	21.3	5.3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9370	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	600	48	3.54:1	7.07:1	5.5	53	6.8	1.7	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9367	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	600	30	4.47:1	8.94:1	5.5	53	4.2	1.1	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9365	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	600	12.8	6.85:1	13.7:1	5.5	53	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9360	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	500	600	1:1.1	1.83:1	6	48	59	15	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9355	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	500	500	1:1	–	6	48	68	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9350	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	500	500	1:1	2:1	6	48	54	13.5	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9347	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	500	150	1.83:1	3.65:1	6	48	18	4.6	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9345	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	500	50	3.16:1	6.32:1	6	39	6.8	1.7	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9344	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	500	16	5.6:1	11.2:1	6	48	1.9	0.5	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9342	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	500	12.8	6.25:1	12.5:1	6	48	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9340	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	400	4000	1:3.16	1:1.58	7	41	375	94	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9335	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	400	2000	1:2.24	1:1.12	7	41	212	53	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9330	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	400	1000	1:1.58	1.26:1	7	41	96	24	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9325	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	400	400	1:1	2:1	7	41	37.5	9.4	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9320	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	400	200	1.41:1	2.83:1	7	41	21.3	5.4	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9315	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	400	120	1.83:1	3.65:1	7	41	12	3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9310	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	400	40	3.16:1	6.32:1	7	41	4.5	1.13	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9305	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	320	12.8	5:1	10:1	7.5	31	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9300	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	300	600	1:1.41	1.41:1	8	30	60	15	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9295	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	300	300	1:1	2:1	8	30	34	8.5	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9290	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	300	150	1.41:1	2.83:1	8	30	18	4.6	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9285	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	300	50	2.45:1	4.9:1	8	30	6.8	1.7	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9280	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	300	12	5:1	10:1	8	24	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9275	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	200	200	1:1	2:1	10	19	21.3	5.4	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9270	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	150	600	1:2	1:1	11	13	75	19	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9265	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	150	150	1:1	2:1	11	12	18.3	4.6	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9260	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	150	100	1.22:1	2.45:1	11	13	11.8	3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9255	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	150	50	1.73:1	3.46:1	11	13	6.8	1.7	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9250	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	150	12	3.54:1	7.08:1	11	11.2	2.2	0.55	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9245	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	120	120	1:1	2:1	12	11.6	13	3.3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9240	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	120	60	1.41:1	2.83:1	12	9	7.2	1.8	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9235	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	120	12.8	3.06:1	6.12:1	12	9.3	2.2	0.55	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9230	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	100	100	1:1	2:1	13	10.8	12	3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9228	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	100	40	1.58:1	3.16:1	13	10.8	5	1.25	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9225	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	80	32	1.58:1	3.16:1	15	7.5	4.3	1.13	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9220	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	50	50	1:1	2:1	19	5	7	1.75	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9218	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	48	16	1.73:1	3.46:1	19	3.75	3	0.75	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9215	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	40	40	1:1	2:1	21	3.7	5	1.25	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9210	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	32	32	1:1	2:1	23	3.3	4.5	1.13	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9205	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	20	20	1:1	2:1	30	2	2.8	0.7	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
P-9203	Insulated Leads	300 Hz to 75 KHz	0.6	0.4	0.3	20	8	1.58:1	3.16:1	30	2	1.2	0.3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8815	Through Hole	300 Hz to 75 KHz	0.1	0.1	0.1	100,000	10,000	3.16:1	6.32:1	0.4	8750	1535	385	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8810	Through Hole	300 Hz to 75 KHz	0.1	0.1	0.1	100,000	500	14.1:1	28.3:1	0.4	8750	68	17	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8805	Through Hole	300 Hz to 75 KHz	0.1	0.1	0.1	100,000	100	31.6:1	63.2:1	0.4	8750	15	3.8	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8800	Through Hole	300 Hz to 75 KHz	0.1	0.1	0.1	100,000	60	40.8:1	81.6:1	0.4	8750	9.2	2.3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8795	Through Hole	300 Hz to 75 KHz	0.1	0.1	0.1	95,000	15,000	2.52:1	5.03:1	0.4	8400	2250	563	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8790	Through Hole	300 Hz to 75 KHz	0.1	0.1	0.1	90,000	10,000	3:1	6:1	0.4	8140	1520	380	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8787	Through Hole	300 Hz to 75 KHz	0.12	0.12	0.12	80,000	15,000	2.3:1	4.6:1	0.4	6130	2250	563	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8785	Through Hole	300 Hz to 75 KHz	0.16	0.16	0.16	62,500	50	35.4:1	70.7:1	0.5	5445	8.7	2.2	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8780	Through Hole	300 Hz to 75 KHz	0.16	0.16	0.16	60,000	15,000	2:1	4:1	0.5	5275	2250	563	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8779	Through Hole	300 Hz to 75 KHz	0.2	0.2	0.2	50,000	600	9.13:1	18.26:1	0.6	4850	75	18.5	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8777	Through Hole	300 Hz to 75 KHz	0.2	0.2	0.2	50,000	500	10:1	20:1	0.6	4850	68	17	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8775	Through Hole	300 Hz to 75 KHz	0.2	0.2	0.2	50,000	200	15.8:1	31.6:1	0.6	4850	27	6.7	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8770	Through Hole	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	40,000	1:1	–	0.7	3400	4750	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8765	Through Hole	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	20,000	1.41:1	2.83:1	0.7	3400	2700	675	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8760	Through Hole	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	4000	3.16:1	6.32:1	0.7	3400	476	119	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8755	Through Hole	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	2000	4.47:1	8.94:1	0.7	3400	268	67	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8750	Through Hole	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	400	10:1	20:1	0.7	3400	57	14.3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8745	Through Hole	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	30,000	1:1	–	0.8	3000	3310	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8740	Through Hole	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	10,000	1.73:1	3.46:1	0.8	2400	1520	380	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8735	Through Hole	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	5000	2.45:1	4.9:1	0.8	2400	673	169	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8734	Through Hole	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	200	12.25:1	24.5:1	0.8	2400	29	7.2	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8732	Through Hole	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	500	7.75:1	15.5:1	0.8	2400	68	17	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8730	Through Hole	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	1200	5:1	10:1	0.8	2400	156	39	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8725	Through Hole	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	50	24.5:1	49:1	0.8	2400	7	1.75	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8720	Through Hole	300 Hz to 75 KHz	0.4	0.4	0.3	25,000	1000	5:1	10:1	0.8	2170	120	30	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8715	Through Hole	300 Hz to 75 KHz	0.4	0.4	0.3	25,000	500	7.07:1	14.14:1	0.8	2170	68	17	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8710	Through Hole	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	20,000	1:1	–	1	1560	2727	682	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8705	Through Hole	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	10,000	1.41:1	2.83:1	1	1560	1520	380	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8700	Through Hole	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	5000	2:1	4:1	1	1560	672	168	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8695	Through Hole	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	1000	4.47:1	8.94:1	1	1560	121	30.5	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8690	Through Hole	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	800	5:1	10:1	1	1560	108	27	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8685	Through Hole	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	600	5.77:1	11.55:1	1	1560	75	19	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8680	Through Hole	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	500	6.33:1	12.65:1	1	1560	68	17	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8675	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	16,000	1000	4:1	8:1	1	1343	115	29	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8670	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	15,000	1:1	2:1	1	1305	1800	450	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8665	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	15,000	1:1	–	1	1305	1800	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8660	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	10,000	1.22:1	2.45:1	1	1305	1215	304	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8655	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	600	5:1	10:1	1	1305	72.5	18	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8652	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	500	5.48:1	10.95:1	1	1305	53	13	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8650	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	400	6.12:1	12.24:1	1	1305	47	12	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8645	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	10,000	1:1	–	1.4	1060	1215	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8640	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	10,000	1:1	2:1	1.4	866	1215	304	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8635	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	7500	1.15:1	2.3:1	1.4	850	772	193	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8630	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	5000	1.41:1	2.83:1	1.4	850	630	158	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8625	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	2000	2.24:1	4.47:1	1.4	850	255	64	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8620	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	1500	2.58:1	5.16:1	1.4	850	177	44	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8615	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	1200	2.89:1	5.77:1	1.4	850	158	39.5	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8610	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	1000	3.16:1	6.32:1	1.4	850	115	29	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8605	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	600	4.08:1	8.16:1	1.4	850	74	18.5	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8600	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	500	4.47:1	8.94:1	1.4	850	67	17	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8595	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	200	7.07:1	14.14:1	1.4	839	27	6.7	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8590	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	100	10:1	20:1	1.4	839	12	3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8585	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	16	25:1	50:1	1.4	1048	3	0.75	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8580	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	12.8	28:1	56:1	1.4	1048	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8575	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	9000	9000	1:1	–	1.4	796	1100	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8570	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	8000	1200	2.58:1	–	1.5	750	158	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8565	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	8000	1000	2.83:1	5.66:1	1.5	750	115	29	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8560	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	8000	12.8	25:1	50:1	1.5	750	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8555	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	7500	7500	1:1	–	1.5	750	828	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8550	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	7500	2500	1.73:1	3.46:1	1.5	600	305	77	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8545	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	7500	600	3.54:1	7.07:1	1.5	600	78	19.5	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8540	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	7500	100	8.66:1	17.3:1	1.5	600	12	3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8535	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	7500	50	12.2:1	24.5:1	1.5	600	7	1.75	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8530	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	5000	5000	1:1	2:1	2	390	538	135	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8525	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	5000	500	3.16:1	6.32:1	2	350	67	17	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8520	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	4000	8000	1:1.41	–	2	350	1062	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8515	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	4000	1000	2:1	4:1	2	350	115	29	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8514	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	4000	600	2.58:1	5.16:1	2	350	76	19	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8512	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	4000	16	15.8:1	31.6:1	2	350	3	0.75	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8510	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	3600	3600	1:1	2:1	2.5	330	366	92	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8505	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	3000	3000	1:1	–	2.5	304	335	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8500	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	3000	3000	1:1	2:1	2.5	243	335	84	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8497	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	2500	2500	1:1	2:1	2.5	220	305	76	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8495	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	2000	8000	1:2	1:1	3	198	850	213	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8490	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	2000	2000	1:1	–	3	198	218	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8485	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	2000	2000	1:1	2:1	3	198	218	55	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8483	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	2000	8	15.8:1	31.6:1	3	210	1.2	0.3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8480	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	1600	12.8	11.2:1	22.4:1	3.5	130	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8475	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	1500	1500	1:1	–	3.5	126	176	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8470	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	1500	600	1.58:1	–	3.5	126	94	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8465	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	1500	500	1.73:1	3.46:1	3.5	126	68	17	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8460	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	1500	12	11.2:1	22.4:1	3.5	126	1.6	0.4	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8455	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	1200	1200	1:1	–	4	111	125	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8450	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	1200	1200	1:1	2:1	4	113	126	31.6	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8445	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	1200	500	1.55:1	3.1:1	4	113	54	13.5	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8440	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	1200	12.8	9.68:1	19.4:1	4	113	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8435	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	1060	12.8	9.1:1	18.2:1	4	108	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8430	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	1000	1000	1:1	2:1	4.5	103	115	28	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8425	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	1000	50	4.47:1	8.94:1	4.5	103	6.4	1.6	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8420	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	1000	12	9.13:1	18.3:1	4.5	103	1.6	0.4	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8415	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	900	600	1.22:1	2.45:1	4.5	79	75	19	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8410	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	800	800	1:1	2:1	5	75	105	26	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8405	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	800	48	4.08:1	8.16:1	5	75	6.8	1.7	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8400	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	800	12.8	7.9:1	15.8:1	5	75	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8395	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	700	100	2.65:1	5.29:1	5	69	12	3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8390	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	640	12.8	7.07:1	14.14:1	5.5	66	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8387	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	600	1200	1:1.41	1.41:1	5.5	53	105	26	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8385	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	600	600	1:1	–	5.5	53	75	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8380	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	600	600	1:1	2:1	5.5	57	79	20	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8375	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	600	200	1.73:1	3.46:1	5.5	53	21.3	5.3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8370	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	600	48	3.54:1	7.07:1	5.5	53	6.8	1.7	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8367	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	600	30	4.47:1	8.94:1	5.5	53	4.2	1.1	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8365	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	600	12.8	6.85:1	13.7:1	5.5	53	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8360	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	500	600	1:1.1	1.83:1	6	48	59	15	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8355	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	500	500	1:1	–	6	48	68	–	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8350	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	500	500	1:1	2:1	6	48	54	13.5	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8347	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	500	150	1.83:1	3.65:1	6	48	18	4.6	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8345	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	500	50	3.16:1	6.32:1	6	39	6.8	1.7	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8344	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	500	16	5.6:1	11.2:1	6	48	1.9	0.5	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8342	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	500	12.8	6.25:1	12.5:1	6	48	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8340	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	400	4000	1:3.16	1:1.58	7	41	375	94	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8335	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	400	2000	1:2.24	1:1.12	7	41	212	53	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8330	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	400	1000	1:1.58	1.26:1	7	41	96	24	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8325	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	400	400	1:1	2:1	7	41	37.5	9.4	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8320	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	400	200	1.41:1	2.83:1	7	41	21.3	5.4	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8315	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	400	120	1.83:1	3.65:1	7	41	12	3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8310	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	400	40	3.16:1	6.32:1	7	41	4.5	1.13	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8305	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	320	12.8	5:1	10:1	7.5	31	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8300	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	300	600	1:1.41	1.41:1	8	30	60	15	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8295	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	300	300	1:1	2:1	8	30	34	8.5	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8290	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	300	150	1.41:1	2.83:1	8	30	18	4.6	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8285	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	300	50	2.45:1	4.9:1	8	30	6.8	1.7	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8280	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	300	12	5:1	10:1	8	24	1.7	0.43	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8275	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	200	200	1:1	2:1	10	19	21.3	5.4	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8270	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	150	600	1:2	1:1	11	13	75	19	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8265	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	150	150	1:1	2:1	11	12	18.3	4.6	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8260	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	150	100	1.22:1	2.45:1	11	13	11.8	3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8255	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	150	50	1.73:1	3.46:1	11	13	6.8	1.7	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8250	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	150	12	3.54:1	7.08:1	11	11.2	2.2	0.55	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8245	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	120	120	1:1	2:1	12	11.6	13	3.3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8240	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	120	60	1.41:1	2.83:1	12	9	7.2	1.8	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8235	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	120	12.8	3.06:1	6.12:1	12	9.3	2.2	0.55	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8230	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	100	100	1:1	2:1	13	10.8	12	3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8228	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	100	40	1.58:1	3.16:1	13	10.8	5	1.25	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8225	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	80	32	1.58:1	3.16:1	15	7.5	4.3	1.13	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8220	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	50	50	1:1	2:1	19	5	7	1.75	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8218	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	48	16	1.73:1	3.46:1	19	3.75	3	0.75	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8215	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	40	40	1:1	2:1	21	3.7	5	1.25	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8210	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	32	32	1:1	2:1	23	3.3	4.5	1.13	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8205	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	20	20	1:1	2:1	30	2	2.8	0.7	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
L-8203	Through Hole	300 Hz to 75 KHz	0.6	0.4	0.3	20	8	1.58:1	3.16:1	30	2	1.2	0.3	–	0.50″ x 0.35″	Datasheet Technical Drawing Electrical Schematic 3D Step File
CSL815	Round SMT – Gull Lead	300 Hz to 75 KHz	0.1	0.1	0.1	100,000	10,000	3.16:1	6.32:1	0.4	8750	1535	385	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL810	Round SMT – Gull Lead	300 Hz to 75 KHz	0.1	0.1	0.1	100,000	500	14.1:1	28.3:1	0.4	8750	68	17	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL805	Round SMT – Gull Lead	300 Hz to 75 KHz	0.1	0.1	0.1	100,000	100	31.6:1	63.2:1	0.4	8750	15	3.8	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL800	Round SMT – Gull Lead	300 Hz to 75 KHz	0.1	0.1	0.1	100,000	60	40.8:1	81.6:1	0.4	8750	9.2	2.3	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL795	Round SMT – Gull Lead	300 Hz to 75 KHz	0.1	0.1	0.1	95,000	15,000	2.52:1	5.03:1	0.4	8400	2250	563	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL790	Round SMT – Gull Lead	300 Hz to 75 KHz	0.1	0.1	0.1	90,000	10,000	3:1	6:1	0.4	8140	1520	380	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL787	Round SMT – Gull Lead	300 Hz to 75 KHz	0.12	0.12	0.12	80,000	15,000	2.3:1	4.6:1	0.4	6130	2250	563	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL785	Round SMT – Gull Lead	300 Hz to 75 KHz	0.16	0.16	0.16	62,500	50	35.4:1	70.7:1	0.5	5445	8.7	2.2	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL780	Round SMT – Gull Lead	300 Hz to 75 KHz	0.16	0.16	0.16	60,000	15,000	2:1	4:1	0.5	5275	2250	563	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL779	Round SMT – Gull Lead	300 Hz to 75 KHz	0.2	0.2	0.2	50,000	600	9.13:1	18.26:1	0.6	4850	75	18.5	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL777	Round SMT – Gull Lead	300 Hz to 75 KHz	0.2	0.2	0.2	50,000	500	10:1	20:1	0.6	4850	68	17	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL775	Round SMT – Gull Lead	300 Hz to 75 KHz	0.2	0.2	0.2	50,000	200	15.8:1	31.6:1	0.6	4850	27	6.7	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL770	Round SMT – Gull Lead	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	40,000	1:1	–	0.7	3400	4750	–	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL765	Round SMT – Gull Lead	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	20,000	1.41:1	2.83:1	0.7	3400	2700	675	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL760	Round SMT – Gull Lead	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	4000	3.16:1	6.32:1	0.7	3400	476	119	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL755	Round SMT – Gull Lead	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	2000	4.47:1	8.94:1	0.7	3400	268	67	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL750	Round SMT – Gull Lead	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	400	10:1	20:1	0.7	3400	57	14.3	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL745	Round SMT – Gull Lead	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	30,000	1:1	–	0.8	3000	3310	–	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL740	Round SMT – Gull Lead	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	10,000	1.73:1	3.46:1	0.8	2400	1520	380	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL735	Round SMT – Gull Lead	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	5000	2.45:1	4.9:1	0.8	2400	673	169	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL734	Round SMT – Gull Lead	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	200	12.25:1	24.5:1	0.8	2400	29	7.2	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL732	Round SMT – Gull Lead	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	500	7.75:1	15.5:1	0.8	2400	68	17	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL730	Round SMT – Gull Lead	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	1200	5:1	10:1	0.8	2400	156	39	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL725	Round SMT – Gull Lead	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	50	24.5:1	49:1	0.8	2400	7	1.75	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL720	Round SMT – Gull Lead	300 Hz to 75 KHz	0.4	0.4	0.3	25,000	1000	5:1	10:1	0.8	2170	120	30	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL715	Round SMT – Gull Lead	300 Hz to 75 KHz	0.4	0.4	0.3	25,000	500	7.07:1	14.14:1	0.8	2170	68	17	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL710	Round SMT – Gull Lead	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	20,000	1:1	–	1	1560	2727	682	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL705	Round SMT – Gull Lead	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	10,000	1.41:1	2.83:1	1	1560	1520	380	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL700	Round SMT – Gull Lead	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	5000	2:1	4:1	1	1560	672	168	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL695	Round SMT – Gull Lead	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	1000	4.47:1	8.94:1	1	1560	121	30.5	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL690	Round SMT – Gull Lead	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	800	5:1	10:1	1	1560	108	27	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL685	Round SMT – Gull Lead	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	600	5.77:1	11.55:1	1	1560	75	19	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL680	Round SMT – Gull Lead	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	500	6.33:1	12.65:1	1	1560	68	17	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL675	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	16,000	1000	4:1	8:1	1	1343	115	29	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL670	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	15,000	1:1	2:1	1	1305	1800	450	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL665	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	15,000	1:1	–	1	1305	1800	–	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL660	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	10,000	1.22:1	2.45:1	1	1305	1215	304	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL655	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	600	5:1	10:1	1	1305	72.5	18	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL652	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	500	5.48:1	10.95:1	1	1305	53	13	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL650	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	400	6.12:1	12.24:1	1	1305	47	12	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL645	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	10,000	1:1	–	1.4	1060	1215	–	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL640	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	10,000	1:1	2:1	1.4	1060	1483	304	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL635	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	7500	1.15:1	2.3:1	1.4	850	772	193	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL630	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	5000	1.41:1	2.83:1	1.4	850	630	158	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL625	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	2000	2.24:1	4.47:1	1.4	850	255	64	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL620	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	1500	2.58:1	5.16:1	1.4	850	177	44	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL615	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	1200	2.89:1	5.77:1	1.4	850	158	39.5	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL610	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	1000	3.16:1	6.32:1	1.4	850	115	29	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL605	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	600	4.08:1	8.16:1	1.4	850	74	18.5	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL600	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	500	4.47:1	8.94:1	1.4	850	67	17	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL595	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	200	7.07:1	14.14:1	1.4	839	27	6.7	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL590	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	100	10:1	20:1	1.4	839	12	3	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL585	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	16	25:1	50:1	1.4	1048	3	0.75	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL580	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	12.8	28:1	56:1	1.4	1048	1.7	0.43	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL575	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	9000	9000	1:1	–	1.4	796	1100	–	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL570	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	8000	1200	2.58:1	–	1.5	750	158	–	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL565	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	8000	1000	2.83:1	5.66:1	1.5	750	115	29	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL560	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	8000	12.8	25:1	50:1	1.5	750	1.7	0.43	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL555	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	7500	7500	1:1	–	1.5	750	828	–	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL550	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	7500	2500	1.73:1	3.46:1	1.5	600	305	77	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL545	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	7500	600	3.54:1	7.07:1	1.5	600	78	19.5	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL540	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	7500	100	8.66:1	17.3:1	1.5	600	12	3	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL535	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	7500	50	12.2:1	24.5:1	1.5	600	7	1.75	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL530	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	5000	5000	1:1	2:1	2	390	538	135	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL525	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	5000	500	3.16:1	6.32:1	2	350	67	17	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL520	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	4000	8000	1:1.41	–	2	350	1062	–	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL515	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	4000	1000	2:1	4:1	2	350	115	29	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL514	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	4000	600	2.58:1	5.16:1	2	350	76	19	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL512	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	4000	16	15.8:1	31.6:1	2	350	3	0.75	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL510	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	3600	3600	1:1	2:1	2.5	330	366	92	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL505	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	3000	3000	1:1	–	2.5	304	335	–	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL500	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	3000	3000	1:1	2:1	2.5	243	335	84	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL497	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	2500	2500	1:1	2:1	2.5	220	305	76	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL495	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	2000	8000	1:2	1:1	3	198	850	213	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL490	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	2000	2000	1:1	–	3	198	218	–	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL485	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	2000	2000	1:1	2:1	3	198	218	55	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL483	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	2000	8	15.8:1	31.6:1	3	210	1.2	0.3	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL480	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1600	12.8	11.2:1	22.4:1	3.5	130	1.7	0.43	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL475	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1500	1500	1:1	–	3.5	126	176	–	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL470	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1500	600	1.58:1	–	3.5	126	94	–	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL465	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1500	500	1.73:1	3.46:1	3.53	126	68	17	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL460	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1500	12	11.2:1	22.4:1	3.5	126	1.6	0.4	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL455	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1200	1200	1:1	–	4	111	125	–	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL450	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1200	1200	1:1	2:1	4	113	126	31.6	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL445	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1200	500	1.55:1	3.1:1	4	113	54	13.5	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL440	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1200	12.8	9.68:1	19.4:1	4	113	1.7	0.43	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL435	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1060	12.8	9.1:1	18.2:1	4	108	1.7	0.43	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL430	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1000	1000	1:1	2:1	4.5	103	115	28	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL425	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1000	50	4.47:1	8.94:1	4.5	103	6.4	1.6	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL420	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1000	12	9.13:1	18.3:1	4.5	103	1.6	0.4	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL415	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	900	600	1.22:1	2.45:1	4.5	79	75	19	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL410	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	800	800	1:1	2:1	5	75	105	26	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL405	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	800	48	4.08:1	8.16:1	5	75	6.8	1.7	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL400	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	800	12.8	7.9:1	15.8:1	5	75	1.7	0.43	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL395	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	700	100	2.65:1	5.29:1	5	69	12	3	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL390	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	640	12.8	7.07:1	14.14:1	5.5	66	1.7	0.43	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL387	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	600	1200	1:1.41	1.41:1	5.5	53	105	26	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL385	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	600	600	1:1	–	5.5	53	75	–	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL380	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	600	600	1:1	2:1	5.5	57	79	20	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL375	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	600	200	1.73:1	3.46:1	5.5	53	21.3	5.3	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL370	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	600	48	3.54:1	7.07:1	5.5	53	6.8	1.7	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL367	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	600	30	4.47:1	8.94:1	5.5	53	4.2	1.1	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL365	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	600	12.8	6.85:1	13.7:1	5.5	53	1.7	0.43	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL360	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	500	600	1:1.1	1.83:1	6	48	59	15	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL355	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	500	500	1:1	–	6	48	68	–	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL350	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	500	500	1:1	2:1	6	48	54	13.5	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL347	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	500	150	1.83:1	3.65:1	6	48	18	4.6	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL345	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	500	50	3.16:1	6.32:1	6	39	6.8	1.7	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL344	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	500	16	5.6:1	11.2:1	6	48	1.9	0.5	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL342	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	500	12.8	6.25:1	12.5:1	6	48	1.7	0.43	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL340	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	400	4000	1:3.16	1:1.58	7	41	375	94	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL335	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	400	2000	1:2.24	1:1.12	7	41	212	53	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL330	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	400	1000	1:1.58	1.26:1	7	41	96	24	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL325	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	400	400	1:1	2:1	7	41	37.5	9.4	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL320	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	400	200	1.41:1	2.83:1	7	41	21.3	5.4	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL315	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	400	120	1.83:1	3.65:1	7	41	12	3	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL310	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	400	40	3.16:1	6.32:1	7	41	4.5	1.13	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL305	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	320	12.8	5:1	10:1	7.5	31	1.7	0.43	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL300	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	300	600	1:1.41	1.41:1	8	30	60	15	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL295	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	300	300	1:1	2:1	8	30	34	8.5	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL290	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	300	150	1.41:1	2.83:1	8	30	18	4.6	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL285	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	300	50	2.45:1	4.9:1	8	30	6.8	1.7	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL280	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	300	12	5:1	10:1	8	24	1.7	0.43	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL275	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	200	200	1:1	2:1	10	19	21.3	5.4	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL270	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	150	600	1:2	1:1	11	13	75	19	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL265	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	150	150	1:1	2:1	11	12	18.3	4.6	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL260	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	150	100	1.22:1	2.45:1	11	13	11.8	3	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL255	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	150	50	1.73:1	3.46:1	11	13	6.8	1.7	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL250	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	150	12	3.54:1	7.08:1	11	11.2	2.2	55	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL245	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	120	120	1:1	2:1	12	11.6	13	3.3	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL240	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	120	60	1.41:1	2.83:1	12	9	7.2	1.8	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL235	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	120	12.8	3.06:1	6.12:1	12	9.3	2.2	0.55	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL230	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	100	100	1:1	2:1	13	10.8	12	3	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL228	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	100	40	1.58:1	3.16:1	13	10.8	5	1.25	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL225	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	80	32	1.58:1	3.16:1	15	7.5	4.3	1.13	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL220	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	50	50	1:1	2:1	19	5	7	1.75	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL218	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	48	16	1.73:1	3.46:1	19	3.75	3	0.75	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL215	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	40	40	1:1	2:1	21	3.7	5	1.25	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL210	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	32	32	1:1	2:1	23	3.3	4.5	1.13	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL205	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	20	20	1:1	2:1	30	2	2.8	0.7	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
CSL203	Round SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	20	8	1.58:1	3.16:1	30	2	1.2	0.3	–	0.50″ x 0.39″	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76815	Square SMT – Gull Lead	300 Hz to 75 KHz	0.1	0.1	0.1	100,000	10,000	3.16:1	6.32:1	0.4	8750	1535	385	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76810	Square SMT – Gull Lead	300 Hz to 75 KHz	0.1	0.1	0.1	100,000	500	14.1:1	28.3:1	0.4	8750	68	17	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76805	Square SMT – Gull Lead	300 Hz to 75 KHz	0.1	0.1	0.1	100,000	100	31.6:1	63.2:1	0.4	8750	15	3.8	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76800	Square SMT – Gull Lead	300 Hz to 75 KHz	0.1	0.1	0.1	100,000	60	40.8:1	81.6:1	0.4	8750	9.2	2.3	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76795	Square SMT – Gull Lead	300 Hz to 75 KHz	0.1	0.1	0.1	95,000	15,000	2.52:1	5.03:1	0.4	8400	2250	563	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76790	Square SMT – Gull Lead	300 Hz to 75 KHz	0.1	0.1	0.1	90,000	10,000	3:1	6:1	0.4	8140	1520	380	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76787	Square SMT – Gull Lead	300 Hz to 75 KHz	0.12	0.12	0.12	80,000	15,000	2.3:1	4.6:1	0.4	6130	2250	563	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76785	Square SMT – Gull Lead	300 Hz to 75 KHz	0.16	0.16	0.16	62,500	50	35.4:1	70.7:1	0.5	5445	8.7	2.2	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76780	Square SMT – Gull Lead	300 Hz to 75 KHz	0.16	0.16	0.16	60,000	15,000	2:1	4:1	0.5	5275	2250	563	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76779	Square SMT – Gull Lead	300 Hz to 75 KHz	0.2	0.2	0.2	50,000	600	9.13:1	18.26:1	0.6	4850	75	18.5	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76777	Square SMT – Gull Lead	300 Hz to 75 KHz	0.2	0.2	0.2	50,000	500	10:1	20:1	0.6	4850	68	17	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76775	Square SMT – Gull Lead	300 Hz to 75 KHz	0.2	0.2	0.2	50,000	200	15.8:1	31.6:1	0.6	4850	27	6.7	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76770	Square SMT – Gull Lead	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	40,000	1:1	–	0.7	3400	4750	–	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76765	Square SMT – Gull Lead	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	20,000	1.41:1	2.83:1	0.7	3400	2700	675	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76760	Square SMT – Gull Lead	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	4000	3.16:1	6.32:1	0.7	3400	476	119	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76755	Square SMT – Gull Lead	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	2000	4.47:1	8.94:1	0.7	3400	268	67	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76750	Square SMT – Gull Lead	300 Hz to 75 KHz	0.25	0.25	0.25	40,000	400	10:1	20:1	0.7	3400	57	14.3	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76745	Square SMT – Gull Lead	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	30,000	1:1	–	0.8	3000	3310	–	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76740	Square SMT – Gull Lead	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	10,000	1.73:1	3.46:1	0.8	2400	1520	380	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76735	Square SMT – Gull Lead	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	5000	2.45:1	4.9:1	0.8	2400	673	169	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76734	Square SMT – Gull Lead	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	200	12.25:1	24.5:1	0.8	2400	29	7.2	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76732	Square SMT – Gull Lead	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	500	7.75:1	15.5:1	0.8	2400	68	17	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76730	Square SMT – Gull Lead	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	1200	5:1	10:1	0.8	2400	156	39	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76725	Square SMT – Gull Lead	300 Hz to 75 KHz	0.33	0.33	0.3	30,000	50	24.5:1	49:1	0.8	2400	7	1.75	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76720	Square SMT – Gull Lead	300 Hz to 75 KHz	0.4	0.4	0.3	25,000	1000	5:1	10:1	0.8	2170	120	30	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76715	Square SMT – Gull Lead	300 Hz to 75 KHz	0.4	0.4	0.3	25,000	500	7.07:1	14.14:1	0.8	2170	68	17	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76710	Square SMT – Gull Lead	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	20,000	1:1	–	1	1560	2727	682	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76705	Square SMT – Gull Lead	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	10,000	1.41:1	2.83:1	1	1560	1520	380	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76700	Square SMT – Gull Lead	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	5000	2:1	4:1	1	1560	672	168	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76695	Square SMT – Gull Lead	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	1000	4.47:1	8.94:1	1	1560	121	30.5	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76690	Square SMT – Gull Lead	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	800	5:1	10:1	1	1560	108	27	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76685	Square SMT – Gull Lead	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	600	5.77:1	11.55:1	1	1560	75	19	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76680	Square SMT – Gull Lead	300 Hz to 75 KHz	0.5	0.4	0.3	20,000	500	6.33:1	12.65:1	1	1560	68	17	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76675	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	16,000	1000	4:1	8:1	1	1343	115	29	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76670	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	15,000	1:1	2:1	1	1305	1800	450	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76665	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	15,000	1:1	–	1	1305	1800	–	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76660	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	10,000	1.22:1	2.45:1	1	1305	1215	304	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76655	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	600	5:1	10:1	1	1305	72.5	18	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76652	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	500	5.48:1	10.95:1	1	1305	53	13	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76650	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	15,000	400	6.12:1	12.24:1	1	1305	47	12	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76645	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	10,000	1:1	–	1.4	1060	1215	–	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76640	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	10,000	1:1	2:1	1.4	1060	1483	304	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76635	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	7500	1.15:1	2.3:1	1.4	850	772	193	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76630	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	5000	1.41:1	2.83:1	1.4	850	630	158	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76625	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	2000	2.24:1	4.47:1	1.4	850	255	64	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76620	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	1500	2.58:1	5.16:1	1.4	850	177	44	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76615	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	1200	2.89:1	5.77:1	1.4	850	158	39.5	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76610	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	1000	3.16:1	6.32:1	1.4	850	115	29	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76605	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	600	4.08:1	8.16:1	1.4	850	74	18.5	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76600	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	500	4.47:1	8.94:1	1.4	850	67	17	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76595	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	200	7.07:1	14.14:1	1.4	839	27	6.7	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76590	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	100	10:1	20:1	1.4	839	12	3	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76585	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	16	25:1	50:1	1.4	1048	3	0.75	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76580	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	10,000	12.8	28:1	56:1	1.4	1048	1.7	0.43	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76575	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	9000	9000	1:1	–	1.4	796	1100	–	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76570	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	8000	1200	2.58:1	–	1.5	750	158	–	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76565	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	8000	1000	2.83:1	5.66:1	1.5	750	115	29	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76560	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	8000	12.8	25:1	50:1	1.5	750	1.7	0.43	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76555	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	7500	7500	1:1	–	1.5	750	828	–	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76550	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	7500	2500	1.73:1	3.46:1	1.5	600	305	77	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76545	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	7500	600	3.54:1	7.07:1	1.5	600	78	19.5	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76540	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	7500	100	8.66:1	17.3:1	1.5	600	12	3	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76535	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	7500	50	12.2:1	24.5:1	1.5	600	7	1.75	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76530	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	5000	5000	1:1	2:1	2	390	538	135	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76525	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	5000	500	3.16:1	6.32:1	2	350	67	17	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76520	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	4000	8000	1:1.41	–	2	350	1062	–	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76515	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	4000	1000	2:1	4:1	2	350	115	29	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76514	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	4000	600	2.58:1	5.16:1	2	350	76	19	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76512	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	4000	16	15.8:1	31.6:1	2	350	3	0.75	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76510	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	3600	3600	1:1	2:1	2.5	330	366	92	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76505	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	3000	3000	1:1	–	2.5	304	335	–	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76500	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	3000	3000	1:1	2:1	2.5	243	335	84	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76497	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	2500	2500	1:1	2:1	2.5	220	305	76	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76495	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	2000	8000	1:2	1:1	3	198	850	213	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76490	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	2000	2000	1:1	–	3	198	218	–	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76485	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	2000	2000	1:1	2:1	3	198	218	55	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76483	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	2000	8	15.8:1	31.6:1	3	210	1.2	0.3	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76480	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1600	12.8	11.2:1	22.4:1	3.5	130	1.7	0.43	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76475	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1500	1500	1:1	–	3.5	126	176	–	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76470	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1500	600	1.58:1	–	3.5	126	94	–	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76465	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1500	500	1.73:1	3.46:1	3.53	126	68	17	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76460	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1500	12	11.2:1	22.4:1	3.5	126	1.6	0.4	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76455	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1200	1200	1:1	–	4	111	125	–	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76450	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1200	1200	1:1	2:1	4	113	126	31.6	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76445	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1200	500	1.55:1	3.1:1	4	113	54	13.5	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76440	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1200	12.8	9.68:1	19.4:1	4	113	1.7	0.43	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76435	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1060	12.8	9.1:1	18.2:1	4	108	1.7	0.43	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76430	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1000	1000	1:1	2:1	4.5	103	115	28	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76425	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1000	50	4.47:1	8.94:1	4.5	103	6.4	1.6	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76420	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	1000	12	9.13:1	18.3:1	4.5	103	1.6	0.4	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76415	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	900	600	1.22:1	2.45:1	4.5	79	75	19	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76410	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	800	800	1:1	2:1	5	75	105	26	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76405	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	800	48	4.08:1	8.16:1	5	75	6.8	1.7	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76400	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	800	12.8	7.9:1	15.8:1	5	75	1.7	0.43	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76395	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	700	100	2.65:1	5.29:1	5	69	12	3	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76390	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	640	12.8	7.07:1	14.14:1	5.5	66	1.7	0.43	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76387	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	600	1200	1:1.41	1.41:1	5.5	53	105	26	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76385	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	600	600	1:1	–	5.5	53	75	–	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76380	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	600	600	1:1	2:1	5.5	57	79	20	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76375	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	600	200	1.73:1	3.46:1	5.5	53	21.3	5.3	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76370	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	600	48	3.54:1	7.07:1	5.5	53	6.8	1.7	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76367	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	600	30	4.47:1	8.94:1	5.5	53	4.2	1.1	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76365	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	600	12.8	6.85:1	13.7:1	5.5	53	1.7	0.43	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76360	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	500	600	1:1.1	1.83:1	6	48	59	15	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76355	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	500	500	1:1	–	6	48	68	–	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76350	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	500	500	1:1	2:1	6	48	54	13.5	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76347	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	500	150	1.83:1	3.65:1	6	48	18	4.6	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76345	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	500	50	3.16:1	6.32:1	6	39	6.8	1.7	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76344	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	500	16	5.6:1	11.2:1	6	48	1.9	0.5	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76342	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	500	12.8	6.25:1	12.5:1	6	48	1.7	0.43	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76340	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	400	4000	1:3.16	1:1.58	7	41	375	94	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76335	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	400	2000	1:2.24	1:1.12	7	41	212	53	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76330	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	400	1000	1:1.58	1.26:1	7	41	96	24	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76325	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	400	400	1:1	2:1	7	41	37.5	9.4	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76320	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	400	200	1.41:1	2.83:1	7	41	21.3	5.4	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76315	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	400	120	1.83:1	3.65:1	7	41	12	3	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76310	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	400	40	3.16:1	6.32:1	7	41	4.5	1.13	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76305	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	320	12.8	5:1	10:1	7.5	31	1.7	0.43	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76300	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	300	600	1:1.41	1.41:1	8	30	60	15	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76295	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	300	300	1:1	2:1	8	30	34	8.5	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76290	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	300	150	1.41:1	2.83:1	8	30	18	4.6	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76285	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	300	50	2.45:1	4.9:1	8	30	6.8	1.7	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76280	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	300	12	5:1	10:1	8	24	1.7	0.43	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76275	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	200	200	1:1	2:1	10	19	21.3	5.4	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76270	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	150	600	1:2	1:1	11	13	75	19	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76265	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	150	150	1:1	2:1	11	12	18.3	4.6	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76260	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	150	100	1.22:1	2.45:1	11	13	11.8	3	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76255	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	150	50	1.73:1	3.46:1	11	13	6.8	1.7	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76250	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	150	12	3.54:1	7.08:1	11	11.2	2.2	55	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76245	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	120	120	1:1	2:1	12	11.6	13	3.3	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76240	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	120	60	1.41:1	2.83:1	12	9	7.2	1.8	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76235	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	120	12.8	3.06:1	6.12:1	12	9.3	2.2	0.55	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76230	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	100	100	1:1	2:1	13	10.8	12	3	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76228	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	100	40	1.58:1	3.16:1	13	10.8	5	1.25	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76225	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	80	32	1.58:1	3.16:1	15	7.5	4.3	1.13	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76220	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	50	50	1:1	2:1	19	5	7	1.75	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76218	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	48	16	1.73:1	3.46:1	19	3.75	3	0.75	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76215	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	40	40	1:1	2:1	21	3.7	5	1.25	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76210	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	32	32	1:1	2:1	23	3.3	4.5	1.13	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76205	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	20	20	1:1	2:1	30	2	2.8	0.7	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
76203	Square SMT – Gull Lead	300 Hz to 75 KHz	0.6	0.4	0.3	20	8	1.58:1	3.16:1	30	2	1.2	0.3	0.55″ x 0.55″ x 0.42″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File

Series L, P, 76000 & CSL

≤ 600mW at 300Hz to 75KHz

Custom Solutions

Features

Options
